Removal [08/2015 - ]: Procedure

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [08/2015 - 08/2019] , or refer to INITIALIZATION [08/2019 - 08/2022] , or refer to INITIALIZATION [08/2022 - ] ).

  2. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY LH
    1. Remove the exhaust manifold sub-assembly LH (Refer to REMOVAL [08/2015 - ] ).

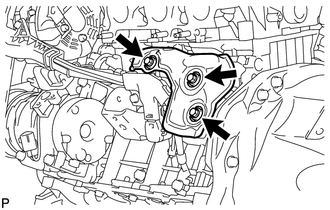

  3. REMOVE STARTER COVER
    1. Remove the 3 bolts and starter cover.
      GTY185914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE STARTER ASSEMBLY

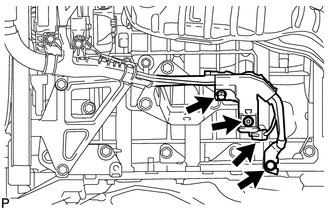

    1. Remove the bolt and disconnect the ground wire.
      GTY185913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the starter connector.
    3. Open the terminal cap.
    4. Remove the nut and bolt, and then disconnect the starter wire.

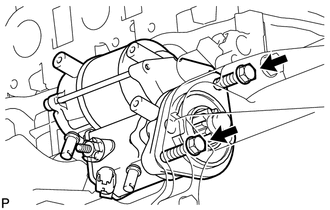

    5. Remove the 2 bolts and starter.
      GTY175273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

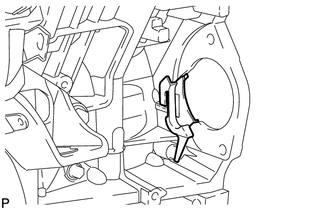

  5. REMOVE FLYWHEEL HOUSING SIDE COVER
    GTY185912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
