Removal [08/2015 - ]: Procedure

  1. REMOVE FAN AND GENERATOR V BELT

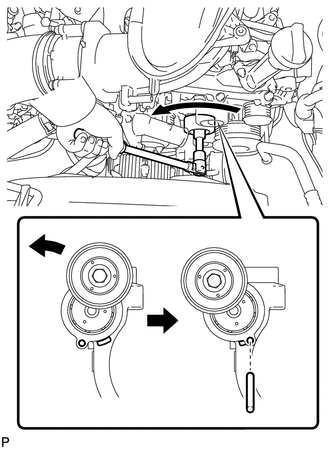

    1. While turning the belt tensioner counterclockwise, align the service hole for the belt tensioner and the belt tensioner fixing position, and then insert a bar of 6 mm (0.236 in.) into the service hole to fix the belt tensioner in place.
      GTY177217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      The pulley bolt for the belt tensioner has a left-hand thread.

    2. Remove the V belt.
