Removal [08/2015 - ]: Procedure

  1. REMOVE NO. 2 AIR TUBE

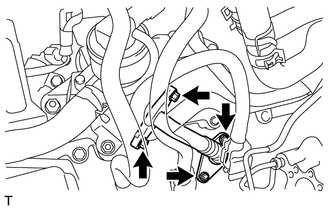

    1. Remove the 2 bolts, 2 nuts and No. 2 air tube.
      GTY382888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 gaskets from the No. 2 air tube.
      NOTE:

      Be careful not to damage the installation surfaces of the gaskets.

  2. REMOVE NO. 2 EMISSION CONTROL VALVE SET

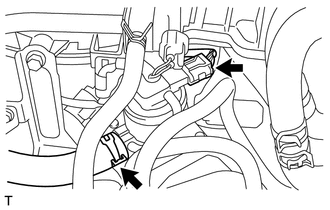

    1. Disconnect the No. 2 emission control valve set connector.
      GTY371652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the No. 3 air hose.

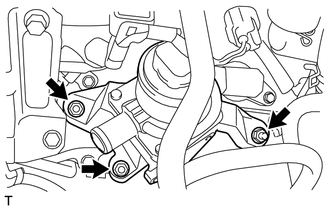

    3. Remove the 3 nuts and No. 2 emission control valve set.
      GTY371650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
