Removal [08/2015 - ]: Procedure

  1. REMOVE PROPELLER SHAFT ASSEMBLY
    1. Place matchmarks on the propeller shaft flange and transfer flange.

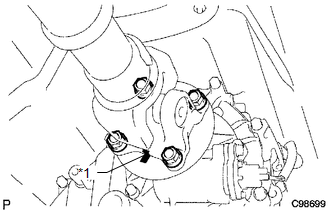

      GTY708328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Matchmark
    2. Remove the 4 nuts, 4 washers and propeller shaft assembly.
    3. Place matchmarks on the propeller shaft flange and differential flange.
      GTY730642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Matchmark
    4. Remove the 4 nuts, 4 bolts and 4 washers.
