Removal [08/2015 - ]: Procedure

  1. REMOVE PROPELLER SHAFT ASSEMBLY
    1. Place matchmarks on the propeller shaft flange and differential flange.

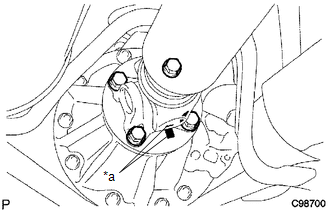

      GTY730642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Matchmark
    2. Remove the 4 nuts, 4 bolts and 4 washers.
    3. Remove the propeller shaft.

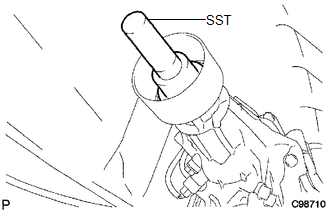

      GTY734864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Insert SST into the transmission to prevent oil leakage.
      • SST: 09325-40010
