Removal [08/2015 - ]: Procedure

  1. REMOVE FRONT EXHAUST PIPE
    1. Remove the front exhaust pipe (Refer to REMOVAL [08/2015 - ] ).
  2. REMOVE FRONT PROPELLER SHAFT ASSEMBLY

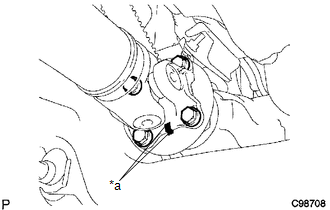

    1. Place matchmarks on the propeller shaft flange and differential.
      GTY710070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Matchmark
    2. Remove the 4 nuts and 4 bolts.
    3. Place matchmarks on the propeller shaft flange and transfer flange.
      GTY726208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Matchmark
    4. Remove the 4 nuts, 4 washers and front propeller shaft assembly.
