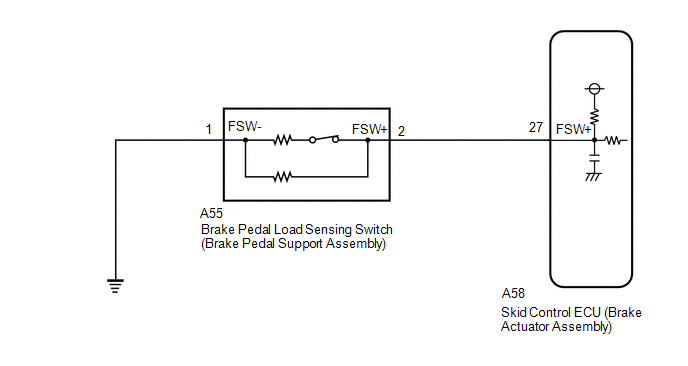

DTC C0040-13: Brake Pedal Switch "A" Circuit Open [08/2019 - ]: Wiring Diagram

GTY883323

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
