Removal [07/2014 - ]

  1. REMOVE REAR WHEEL
  2. REMOVE REAR SHOCK ABSORBER
    1. Pull the rear seatback lock release button and tilt the rear seatback forward.
    2. Support the rear axle beam with a jack. Insert a wooden block between the jack and the rear axle spring seat to prevent damage.

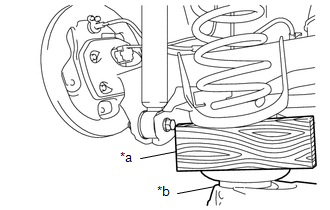

      Fig 1: Identifying Wooden Block And Jack
      GTY439295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Wooden Block
      *b Jack
    3. Remove the 2 nuts while keeping the rear shock absorber piston rod from rotating.

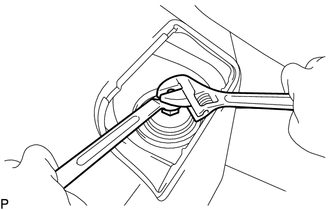

      Fig 2: Identifying Piston Rod Nuts
      GTY294387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the rear shock absorber cushion retainer and the rear suspension support.
    5. Remove the bolt while keeping the nut from rotating and remove the rear shock absorber.
      Fig 3: Locating Shock Absorber Jam Nut
      GTY163880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Since a stopper nut is used, turn the bolt.
  3. REMOVE REAR SUSPENSION SUPPORT STOPPER
  4. REMOVE REAR SUSPENSION SUPPORT ASSEMBLY
