Components [07/2014 - ]: Illustration

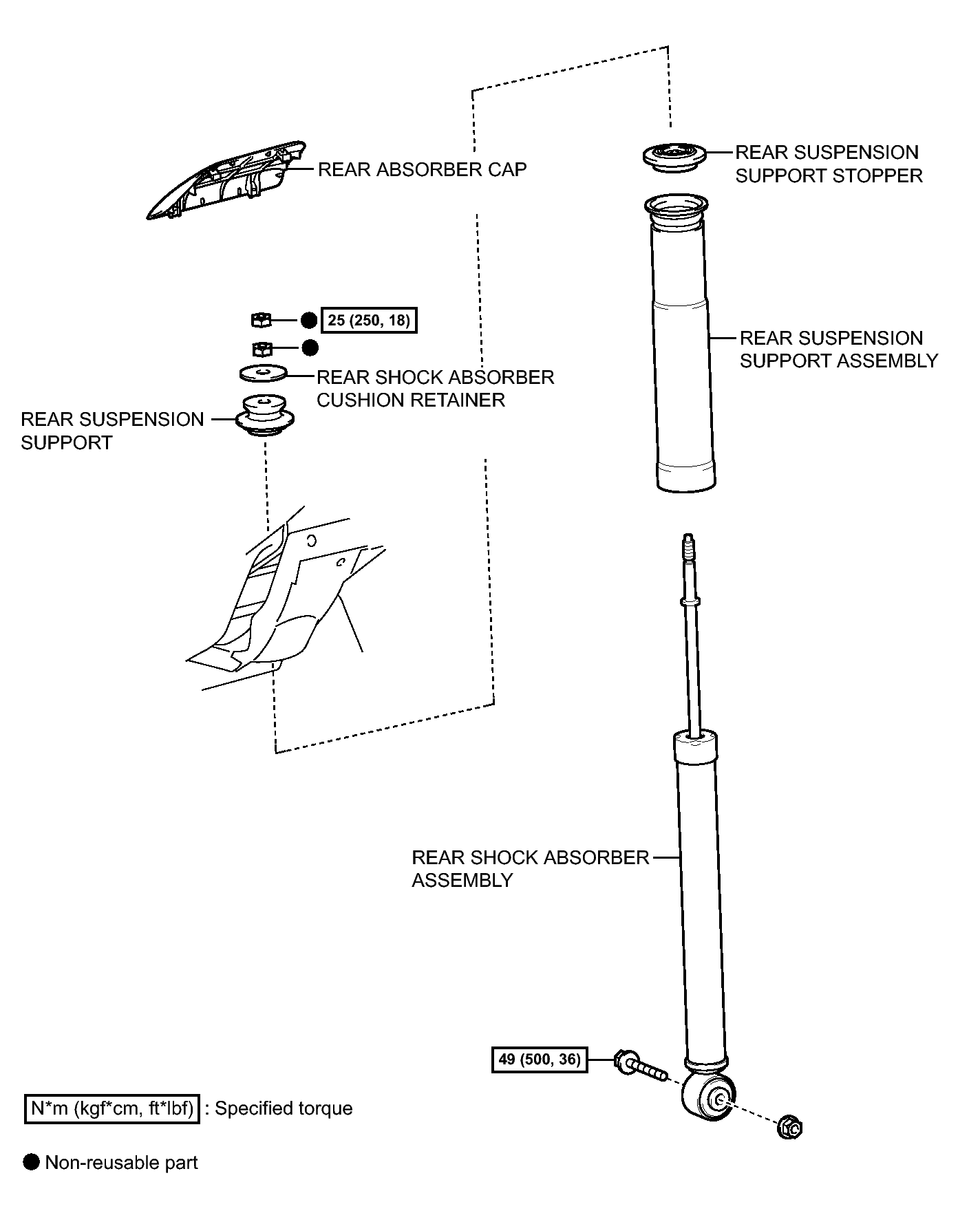

Fig 1: Rear Shock Absorber (Hatchback) Replacement Components With Torque Specifications

GTY332613

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
