Components [07/2014 - ]: Illustration

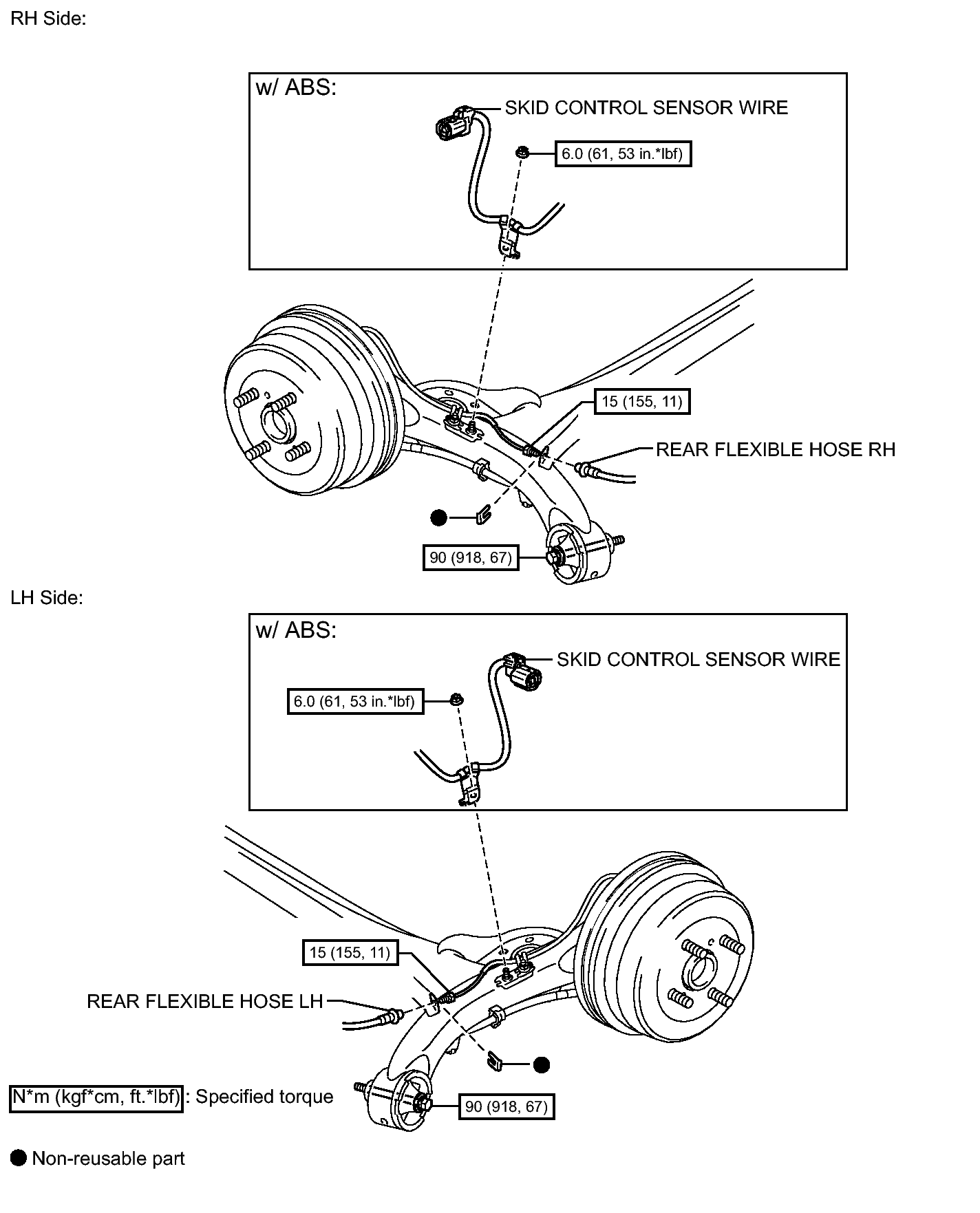

Fig 1: Rear Coil Spring (Sedan) Replacement Components With Torque Specifications (1 Of 2)
GTY430959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Rear Coil Spring (Sedan) Replacement Components With Torque Specifications (2 Of 2)
GTY430743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
