Components [07/2014 - ]: Illustration

Fig 1: Rear Coil Spring (Hatchback) Replacement Components With Torque Specifications (1 Of 3)
GTY481202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Rear Coil Spring (Hatchback) Replacement Components With Torque Specifications (2 Of 3)
GTY474083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

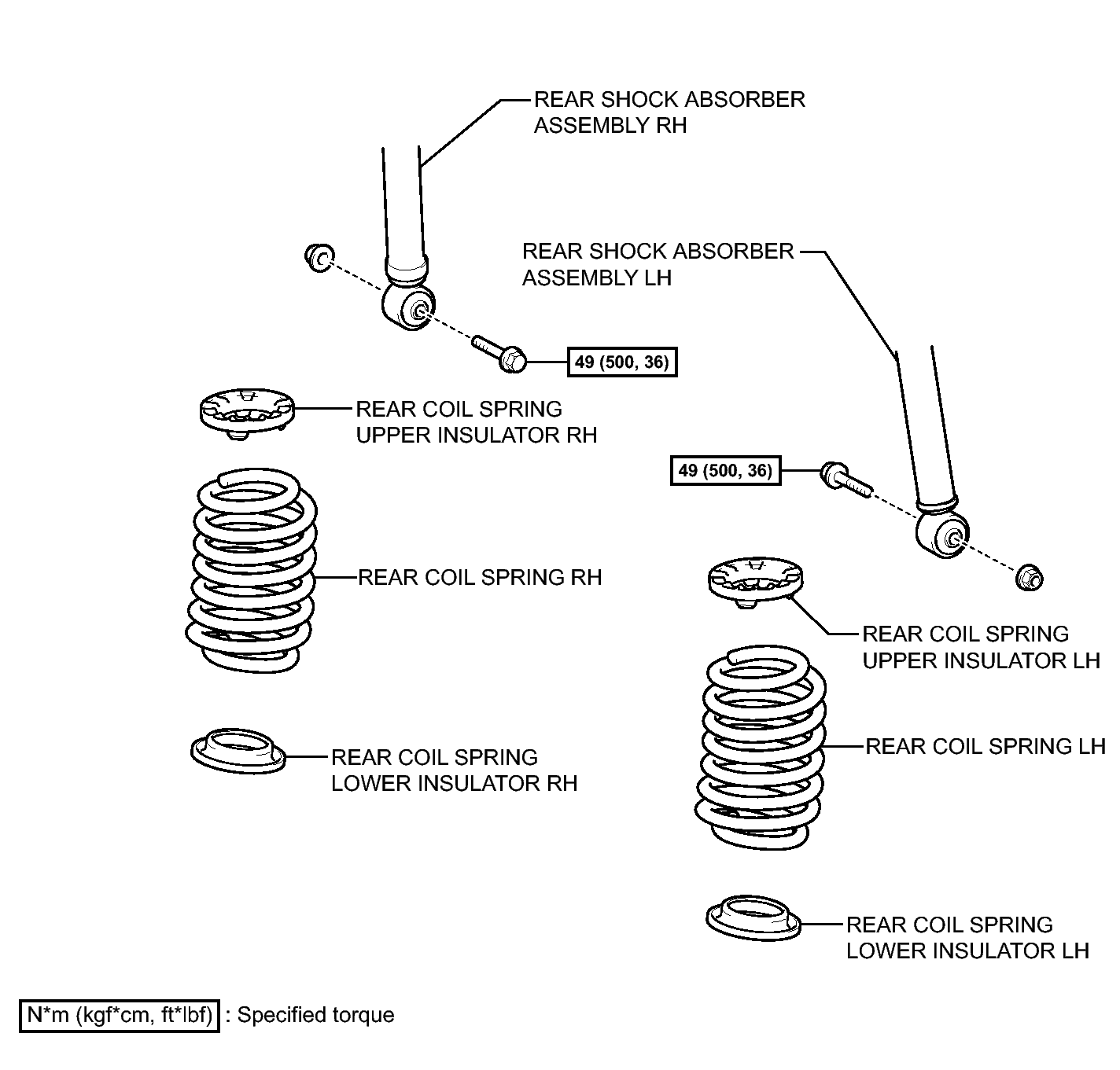

Fig 1: Rear Coil Spring (Hatchback) Replacement Components With Torque Specifications (3 Of 3)
GTY329572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
