Components [07/2014 - ]: Illustration

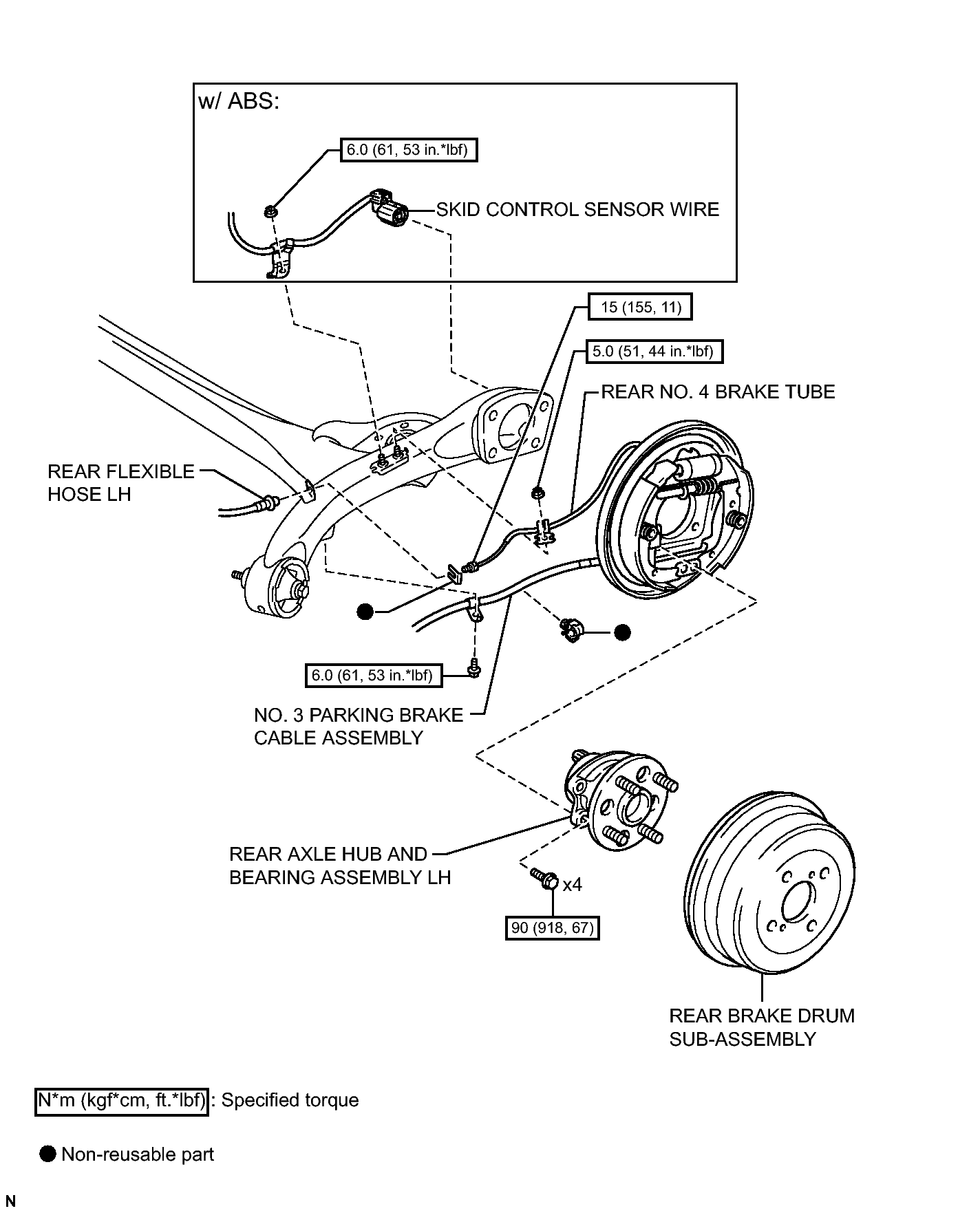

Fig 1: Rear Axle Beam (Sedan) Replacement Components With Torque Specifications (1 Of 4)
GTY424125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

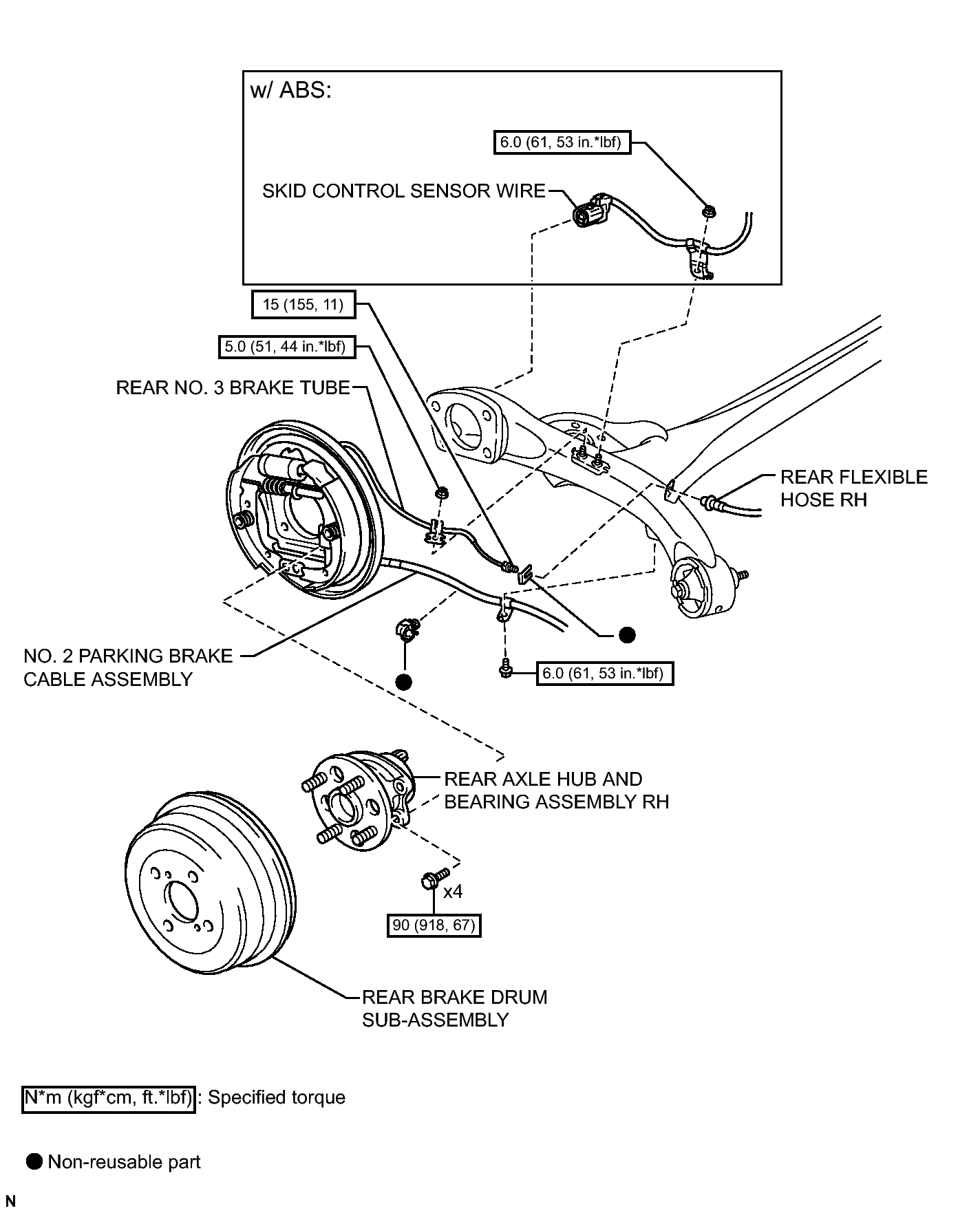

Fig 1: Rear Axle Beam (Sedan) Replacement Components With Torque Specifications (2 Of 4)
GTY455399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

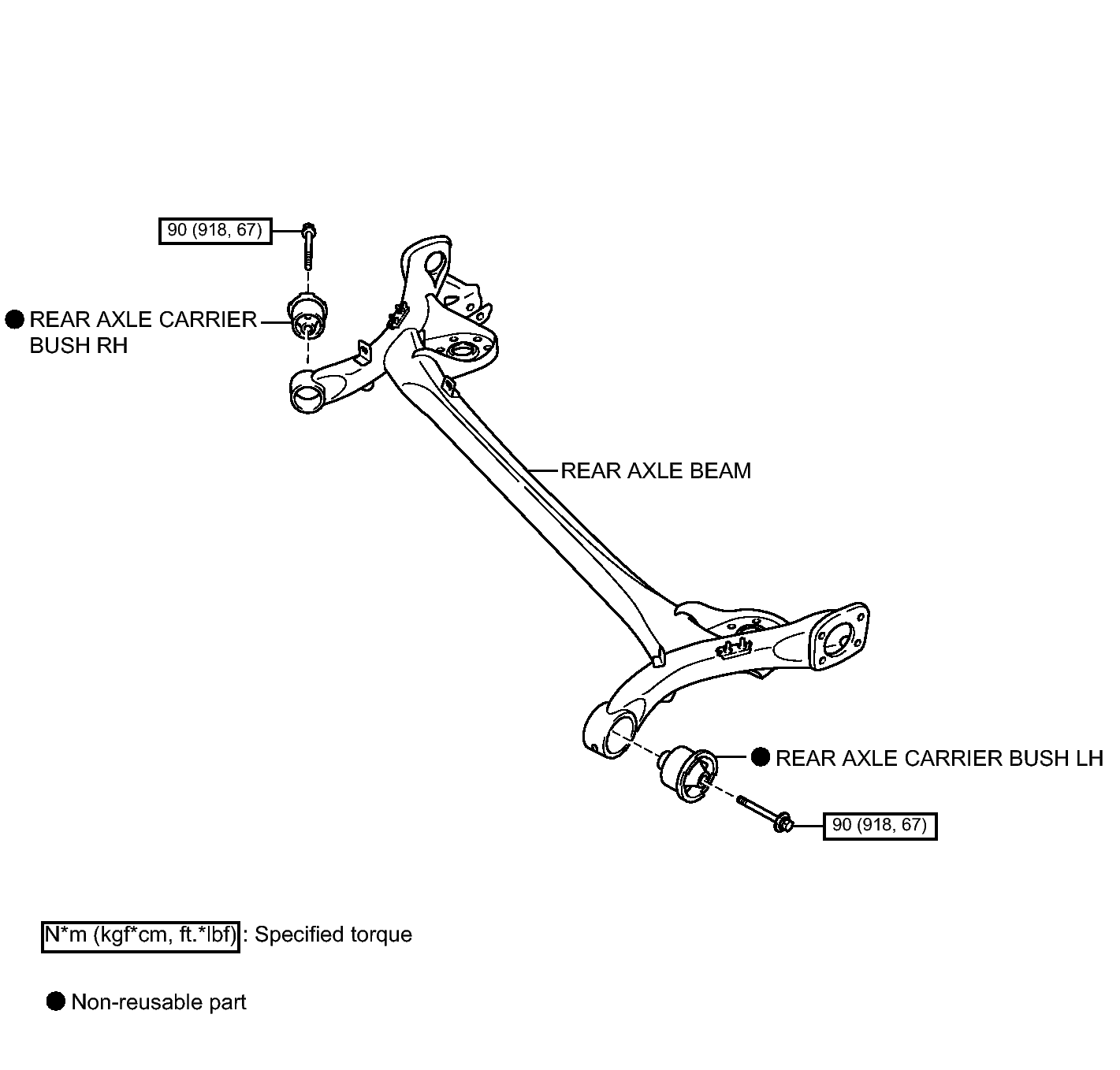

Fig 1: Rear Axle Beam (Sedan) Replacement Components With Torque Specifications (3 Of 4)
GTY430743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

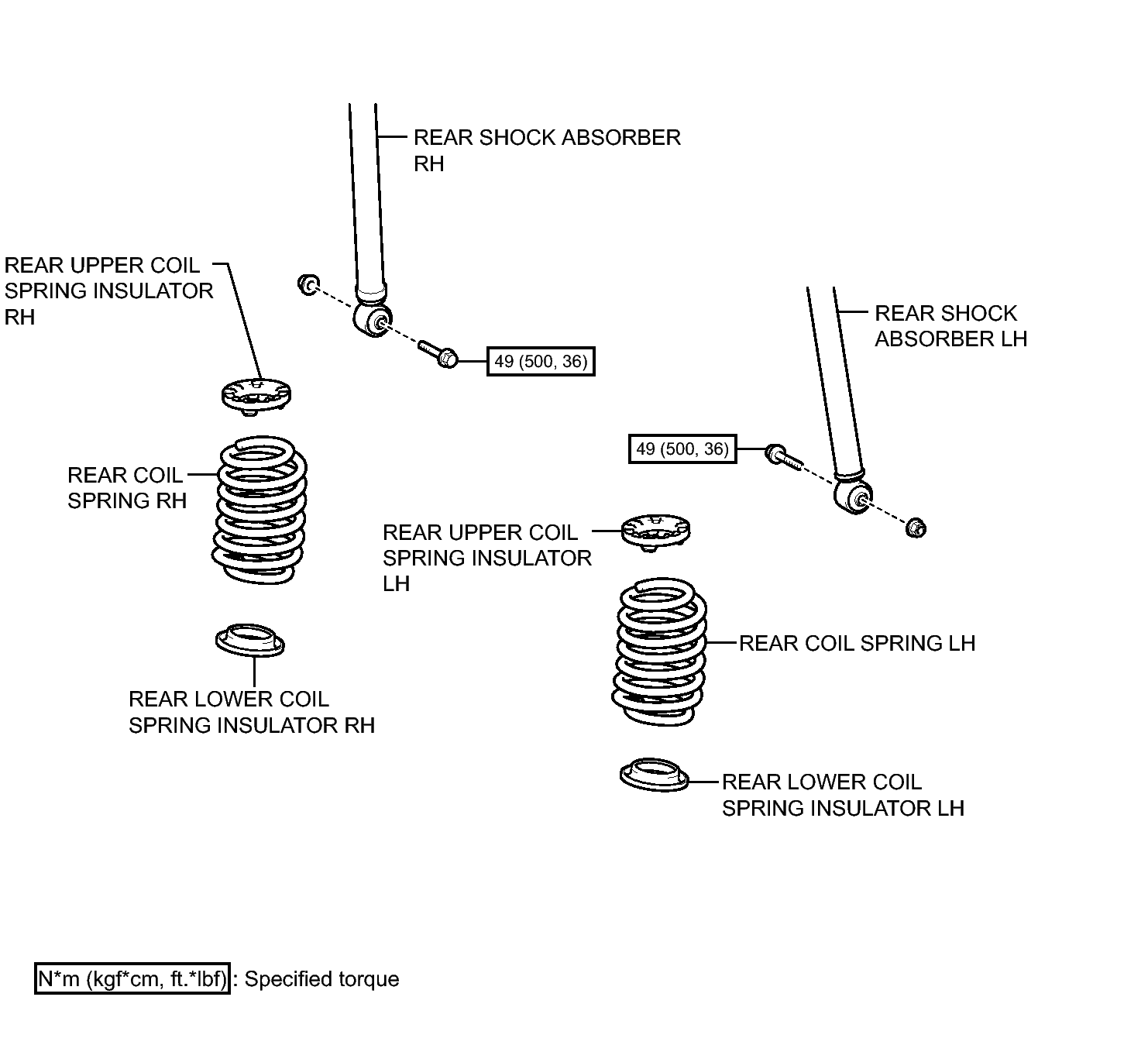

Fig 1: Rear Axle Beam (Sedan) Replacement Components With Torque Specifications (4 Of 4)
GTY424663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
