Components [07/2014 - ]: Illustration

Fig 1: Rear Axle Beam (Hatchback W/Rear Disc Brake) Replacement Components With Torque Specifications (1 Of 6)
GTY472311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Rear Axle Beam (Hatchback W/Rear Disc Brake) Replacement Components With Torque Specifications (2 Of 6)
GTY479856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

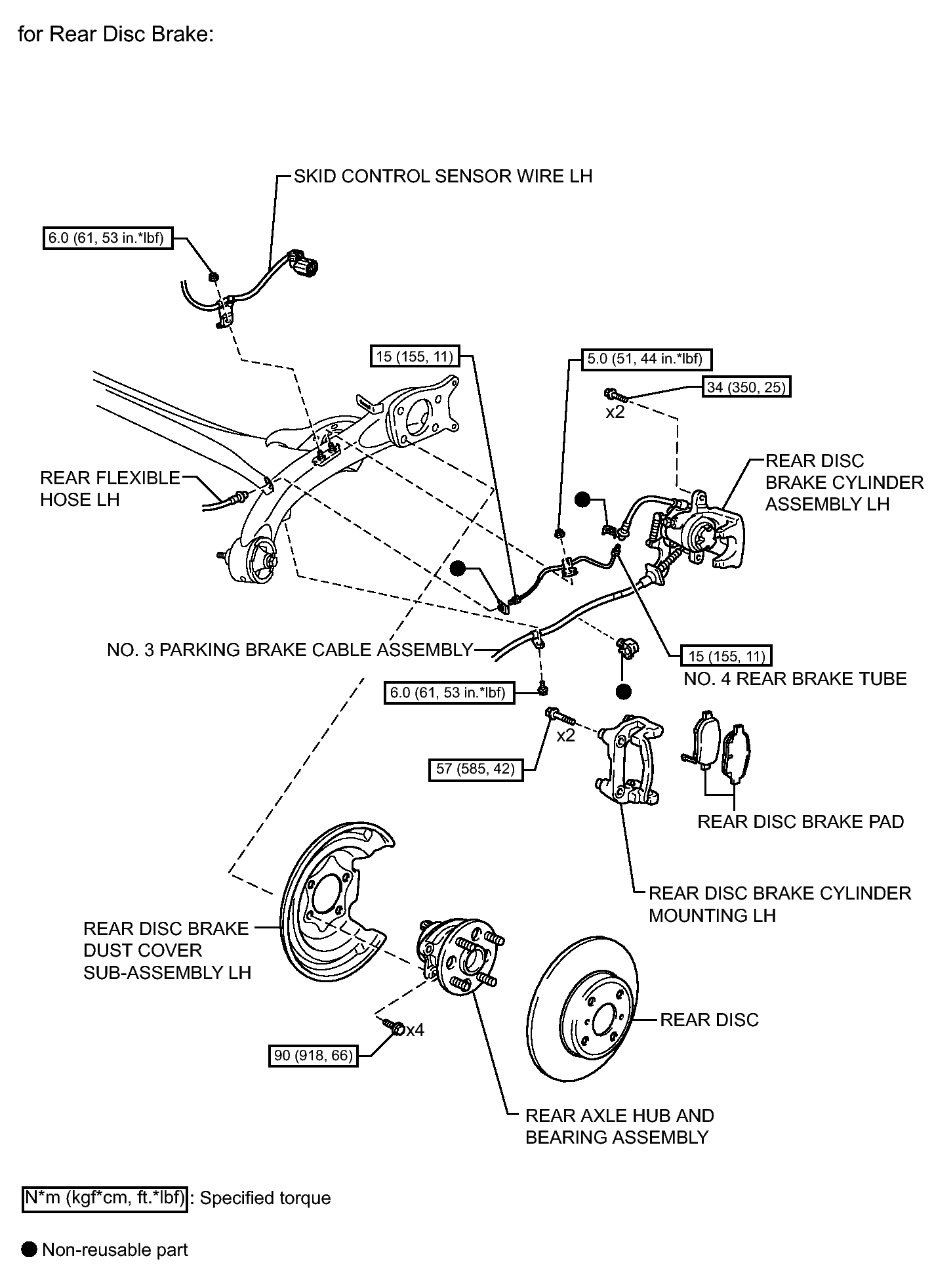

Fig 1: Rear Axle Beam (Hatchback W/Rear Disc Brake) Replacement Components With Torque Specifications (3 Of 6)
GTY476180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

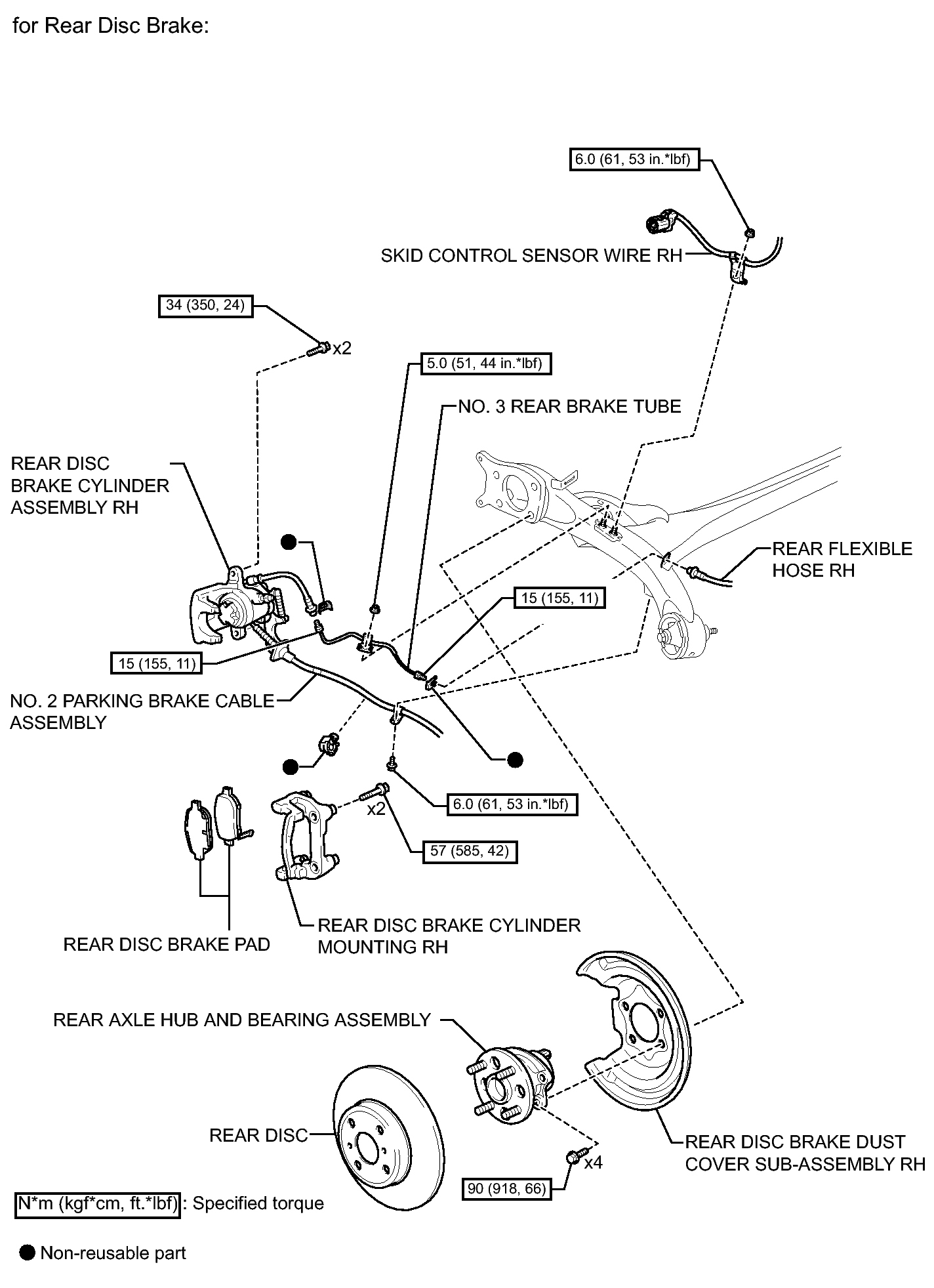

Fig 1: Rear Axle Beam (Hatchback W/Rear Disc Brake) Replacement Components With Torque Specifications (4 Of 6)
GTY472898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

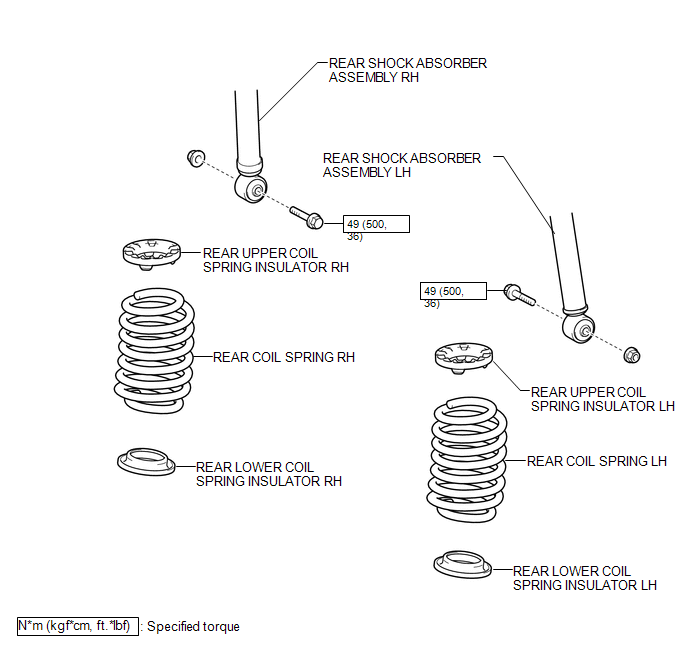

Fig 1: Rear Axle Beam (Hatchback W/Rear Disc Brake) Replacement Components With Torque Specifications (5 Of 6)
GTY376650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

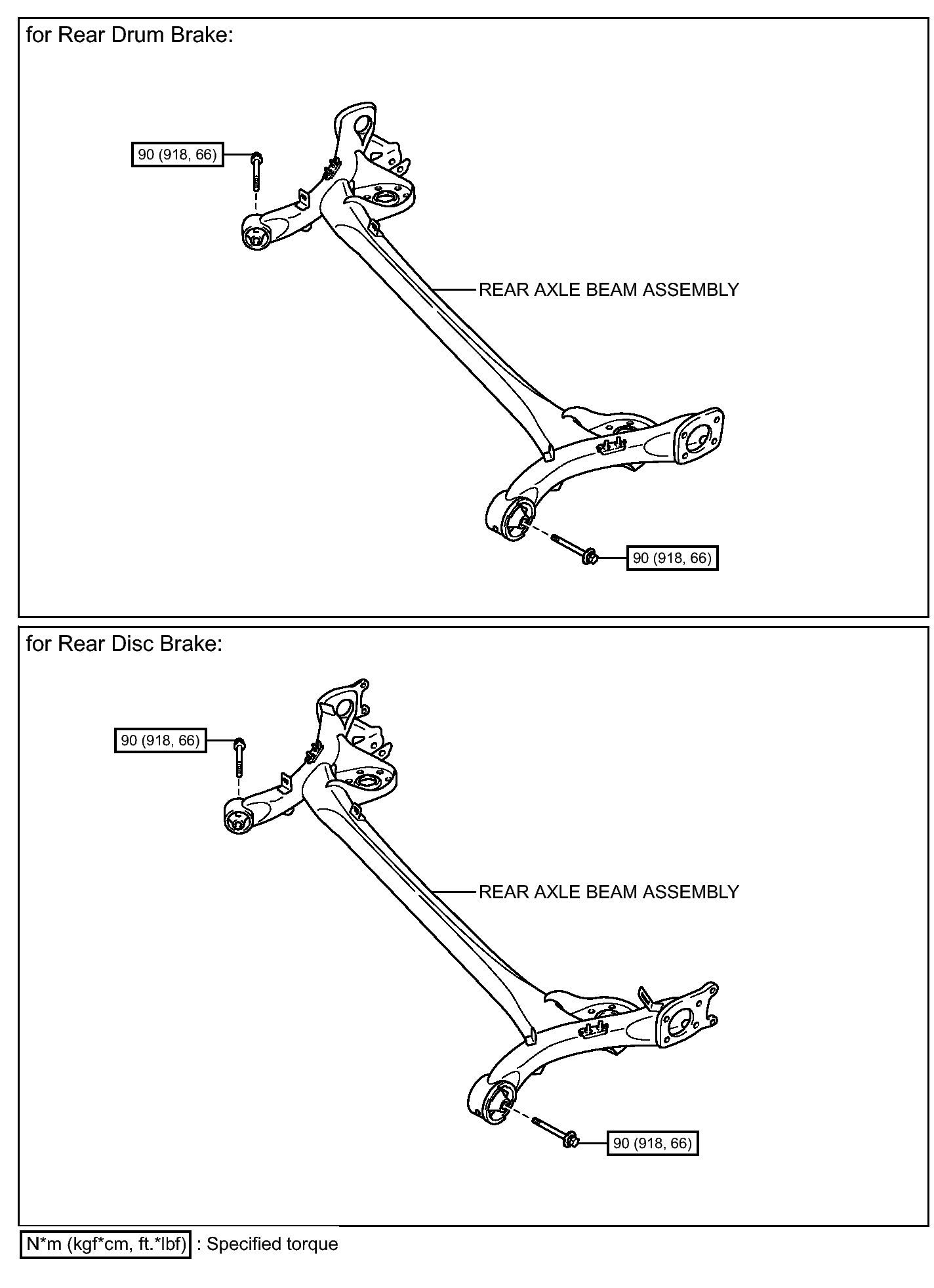

Fig 1: Rear Axle Beam (Hatchback W/Rear Disc Brake) Replacement Components With Torque Specifications (6 Of 6)
GTY476703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
