DTC B1628/82: Side Airbag Sensor Assembly LH Initialization Incomplete [07/2014 - ]: Wiring Diagram

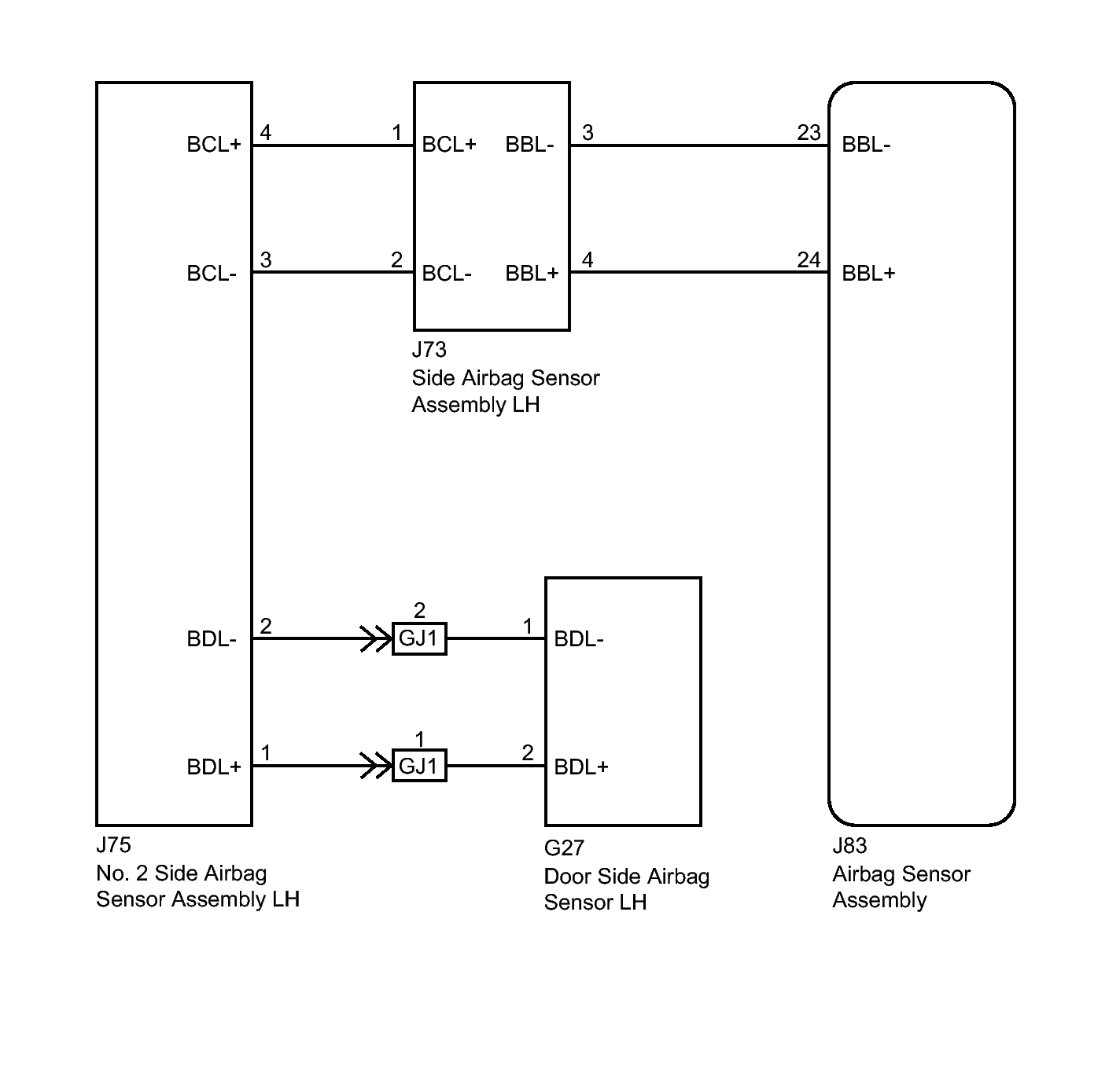

Fig 1: Side Airbag Sensor LH, No. 2 Side Airbag Sensor LH, Door Side Airbag Sensor LH & Airbag Sensor Assembly Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
