Supplemental Restraint System - (Diagnostic Codes (B1000/31- B1655/37))
>>
AIRBAG SYSTEM (for Hatchback)
>>
DTC B1623/81: Side Airbag Sensor Assembly RH Initialization Incomplete [07/2014 - ]
>>
Wiring Diagram
DTC B1623/81: Side Airbag Sensor Assembly RH Initialization Incomplete [07/2014 - ]: Wiring Diagram

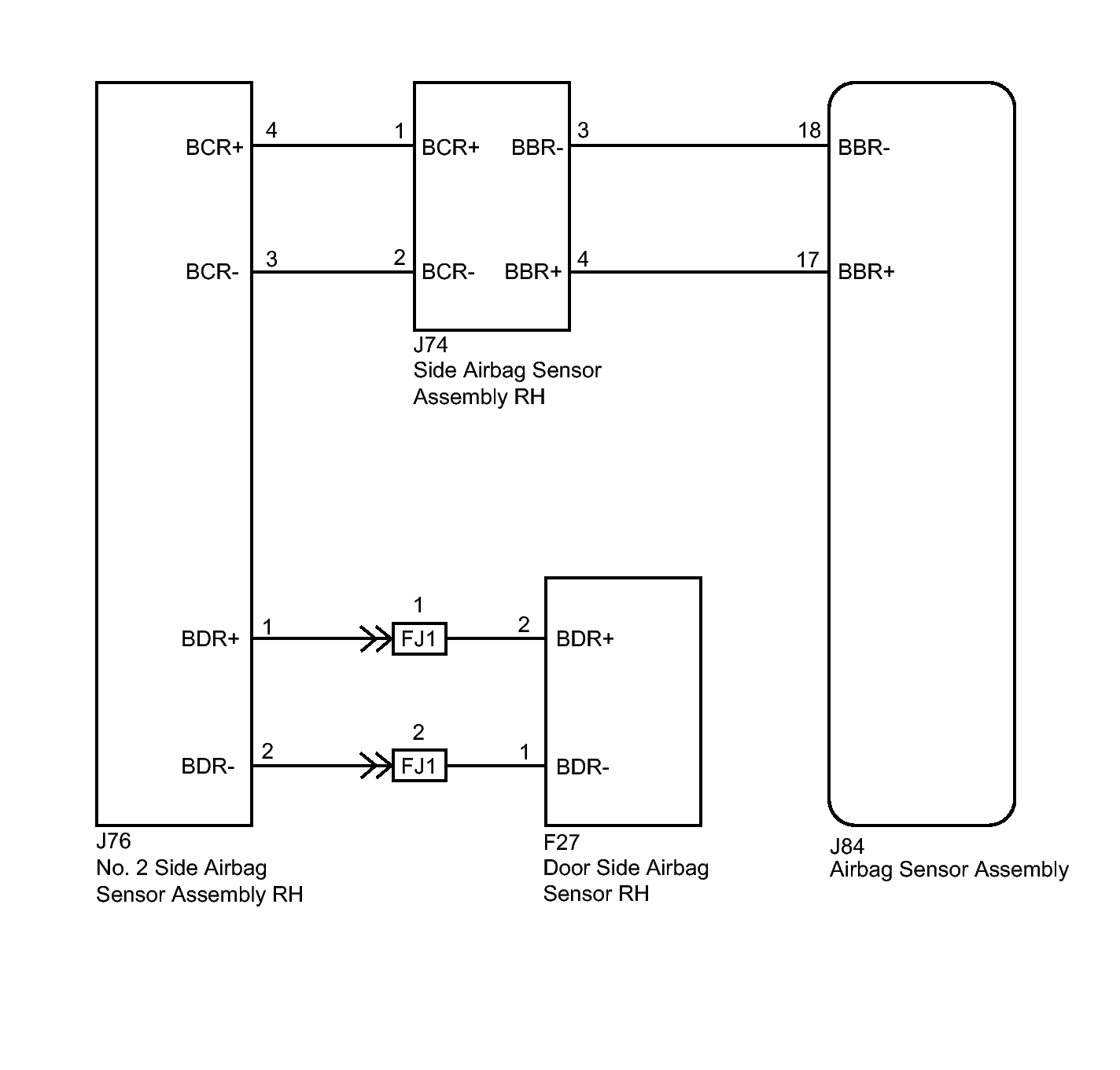

Fig 1: Side Airbag Sensor Assembly RH Initialization Incomplete - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
