Components [07/2014 - ]: Illustration

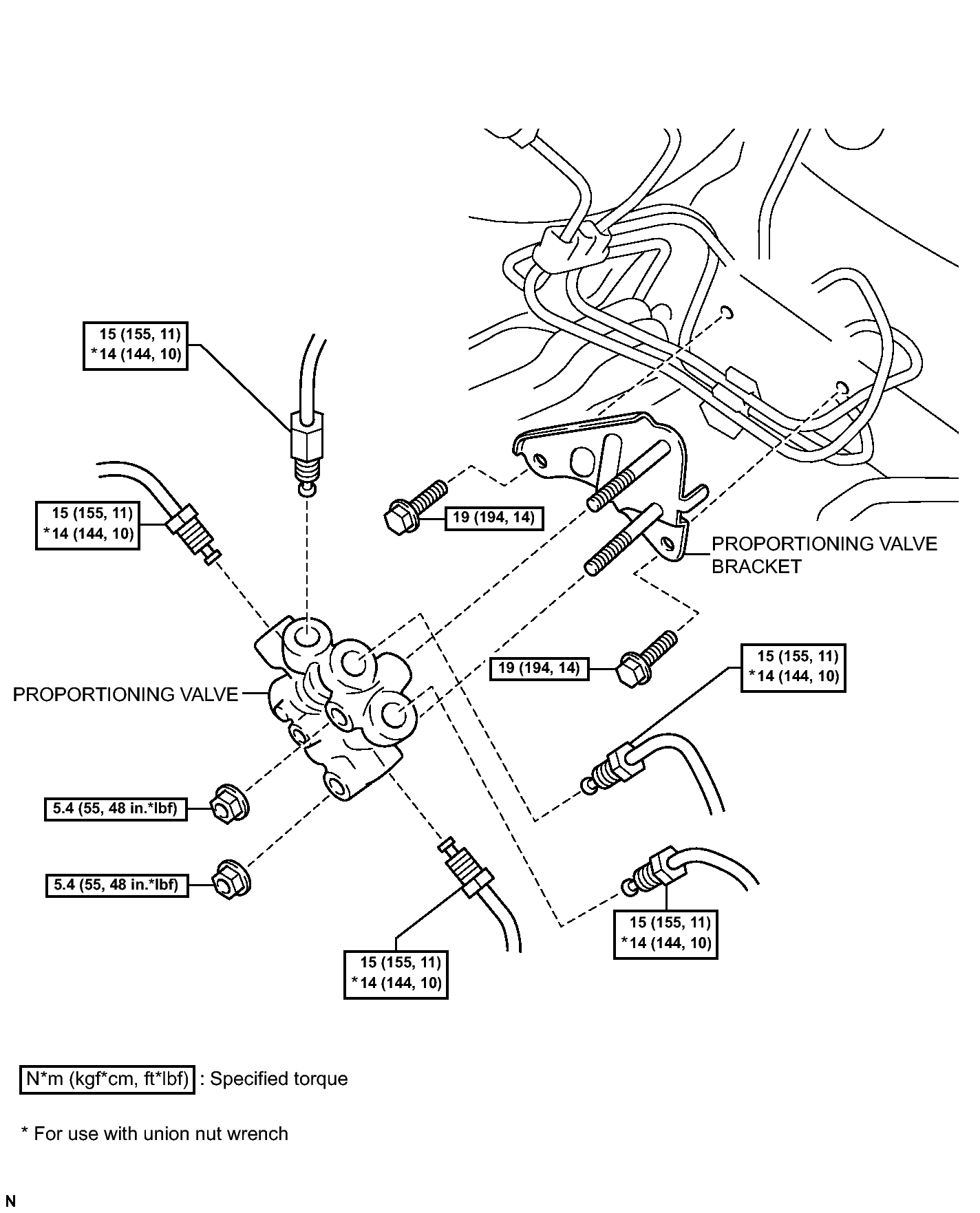

Fig 1: Proportioning Valve (Sedan) Replacement Components With Torque Specifications

GTY328282

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
