Components [07/2014 - ]: Illustration

Fig 1: Brake Pedal (Sedan) Replacement Components With Torque Specifications (1 Of 4)
GTY334717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Brake Pedal (Sedan) Replacement Components With Torque Specifications (2 Of 4)
GTY373249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Brake Pedal (Sedan) Replacement Components With Torque Specifications (3 Of 4)
GTY442533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

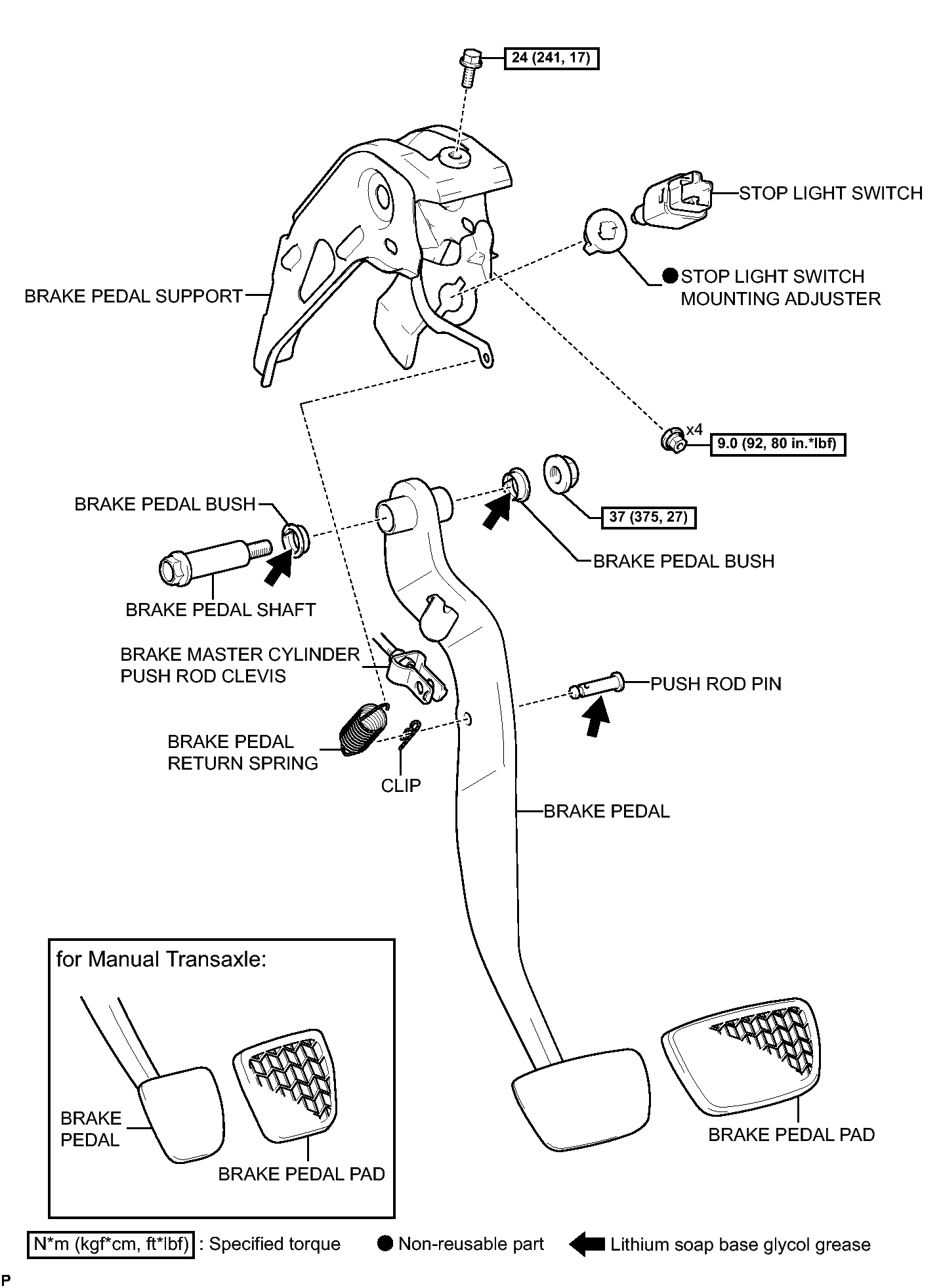

Fig 1: Brake Pedal (Sedan) Replacement Components With Torque Specifications (4 Of 4)
GTY332752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
