Components [07/2014 - ]: Illustration

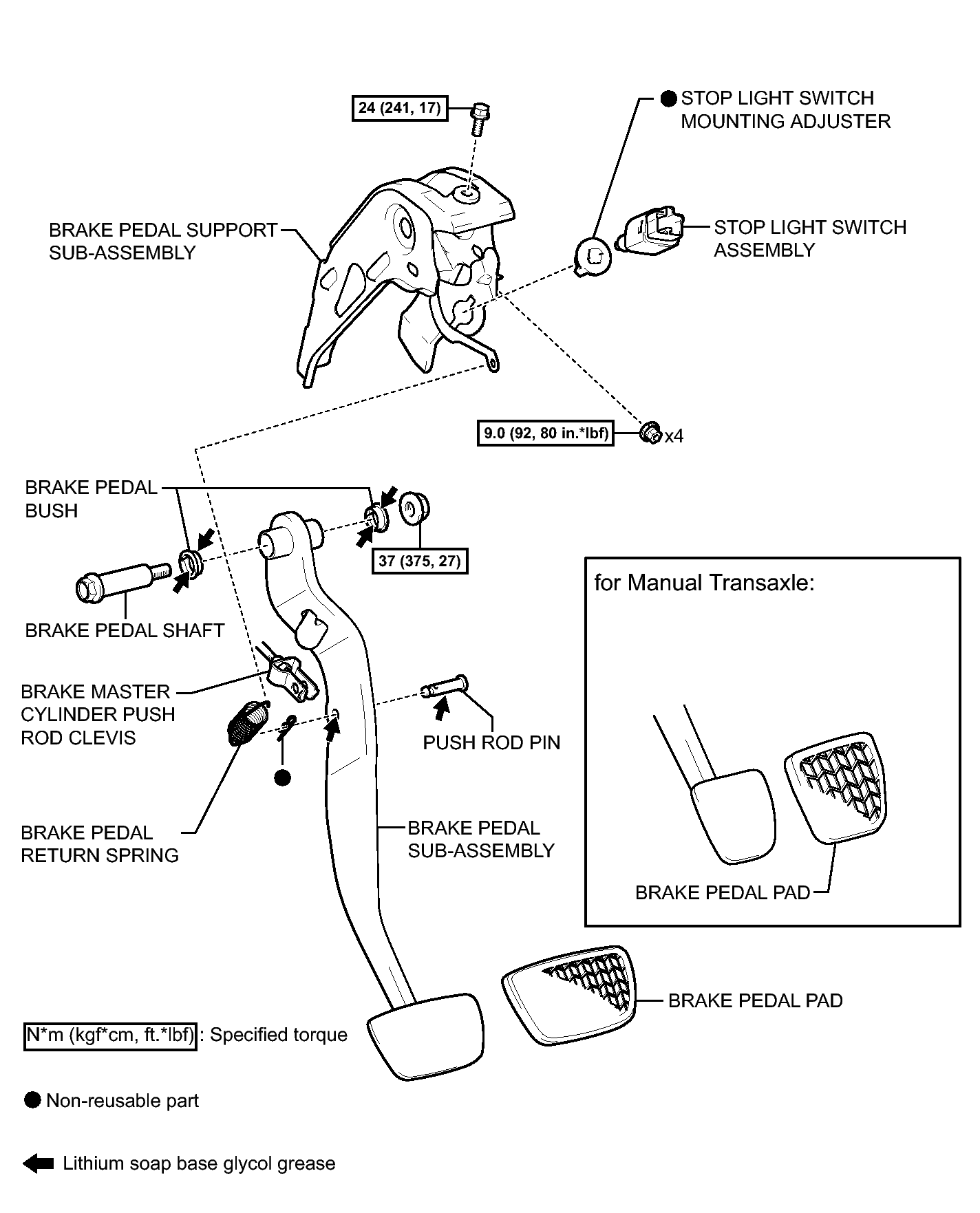

Fig 1: Brake Pedal (Hatchback) Replacement Components With Torque Specifications

GTY336431

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
