Components [07/2014 - ]: Illustration

Fig 1: Brake Master Cylinder (Sedan) Replacement Components With Torque Specifications (1 Of 3)
GTY374812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

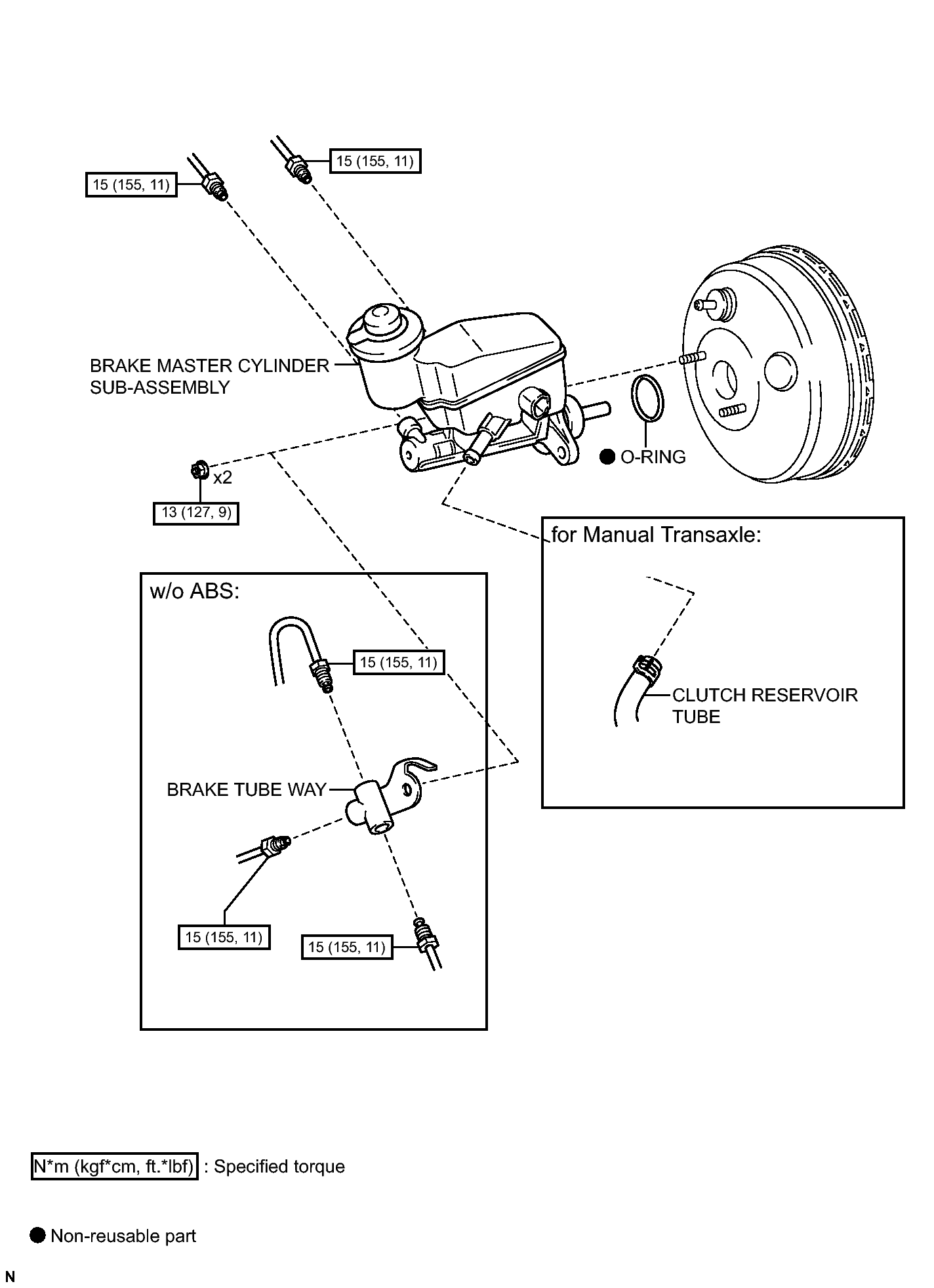

Fig 1: Brake Master Cylinder (Sedan) Replacement Components With Torque Specifications (2 Of 3)
GTY375718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

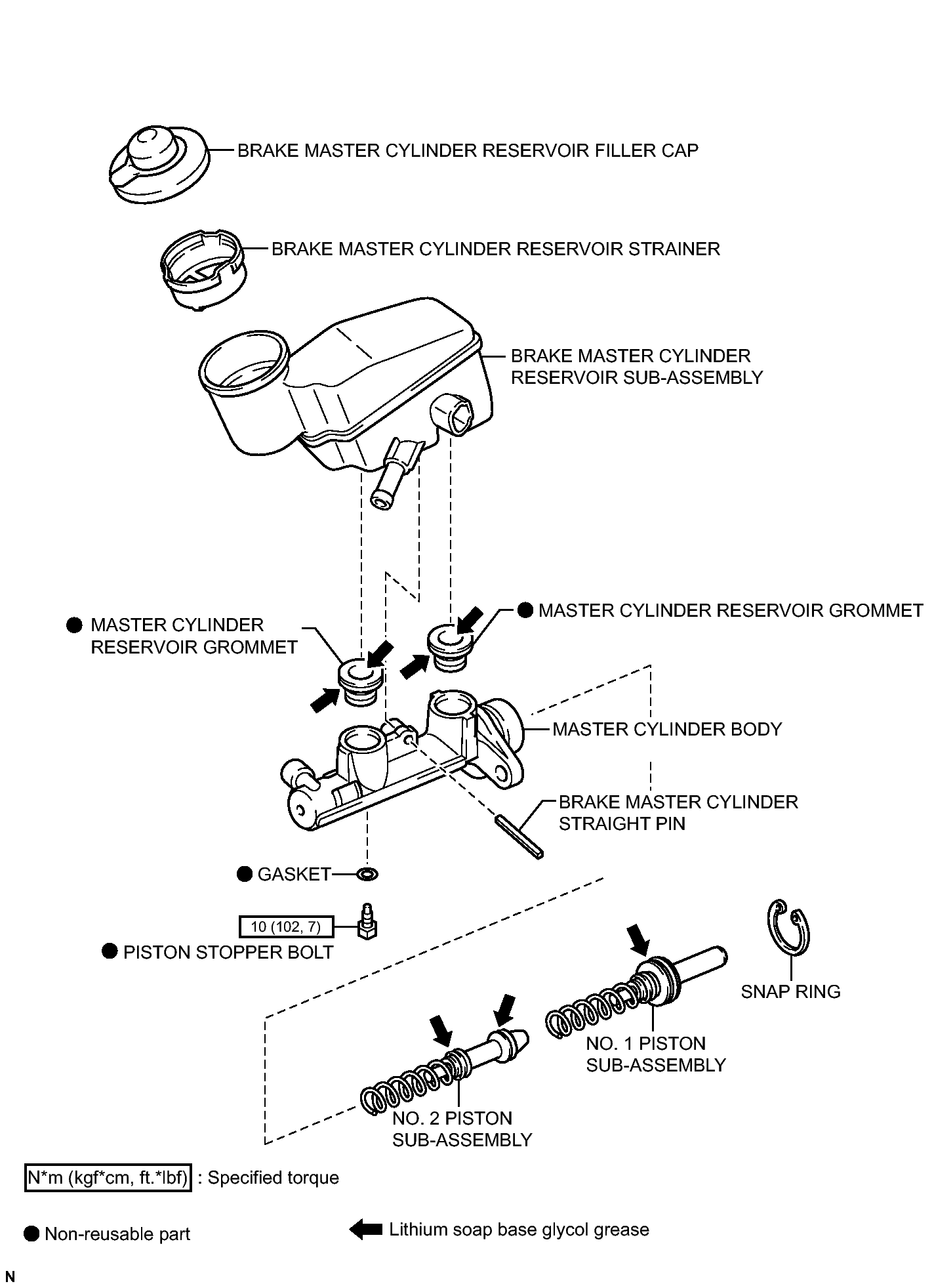

Fig 1: Brake Master Cylinder (Sedan) Replacement Components With Torque Specifications (3 Of 3)
GTY381464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
