Components [07/2014 - ]: Illustration

Fig 1: Brake Master Cylinder (Hatchback) Replacement Components With Torque Specifications (1 Of 3)
GTY476748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

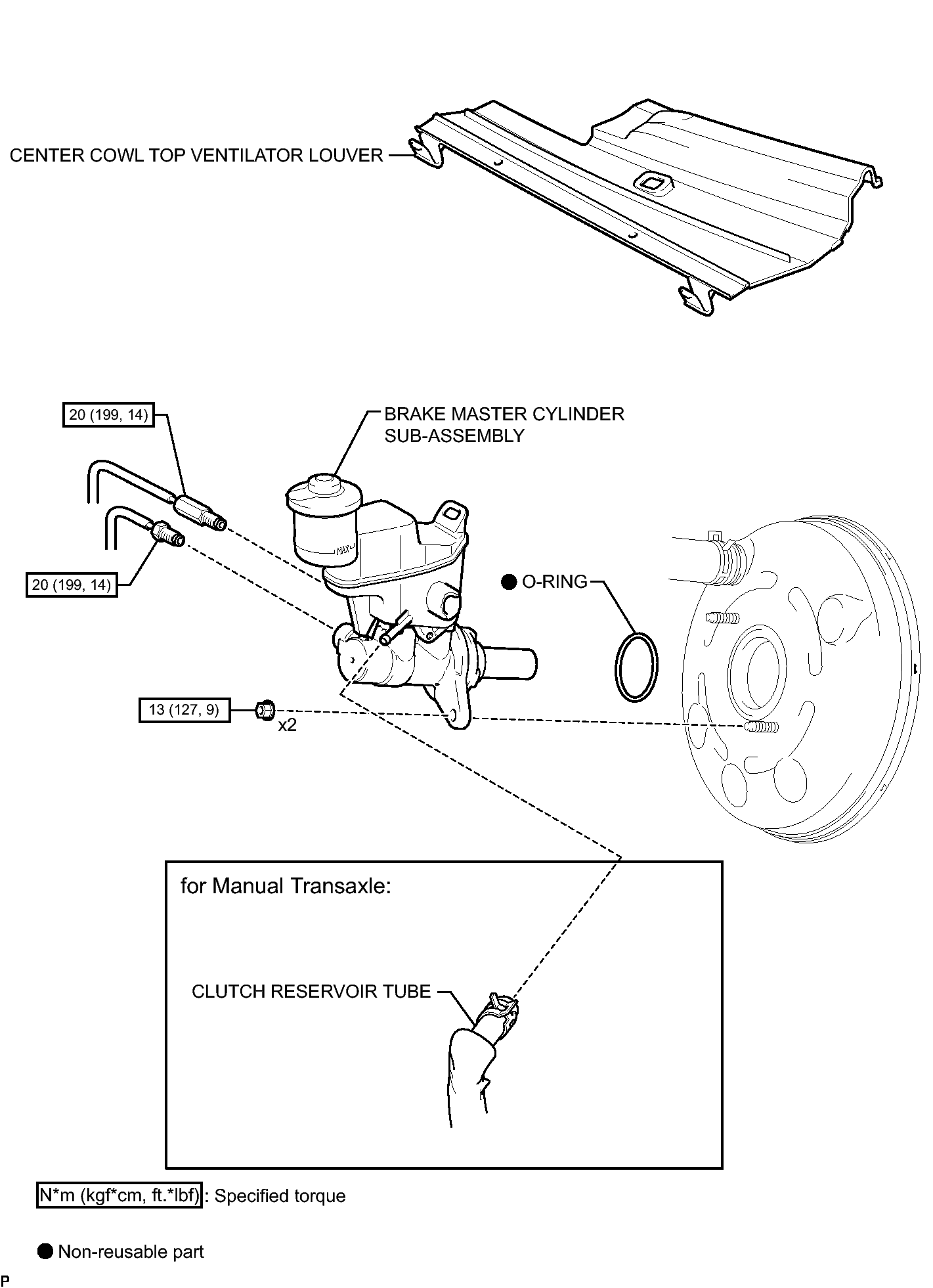

Fig 1: Brake Master Cylinder (Hatchback) Replacement Components With Torque Specifications (2 Of 3)
GTY472910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

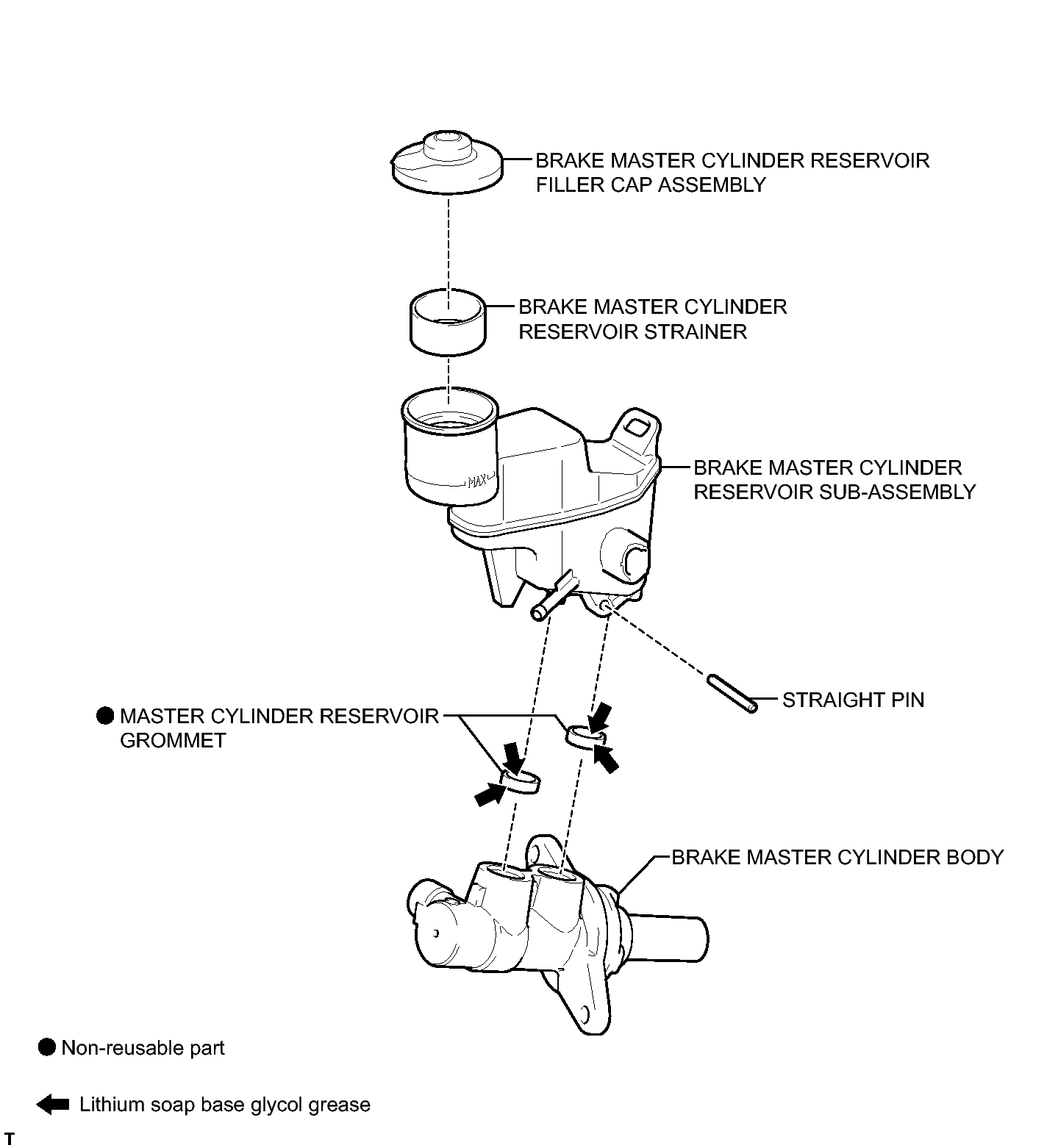

Fig 1: Brake Master Cylinder (Hatchback) Replacement Components With Torque Specifications (3 Of 3)
GTY324212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
