Components [07/2014 - ]: Illustration

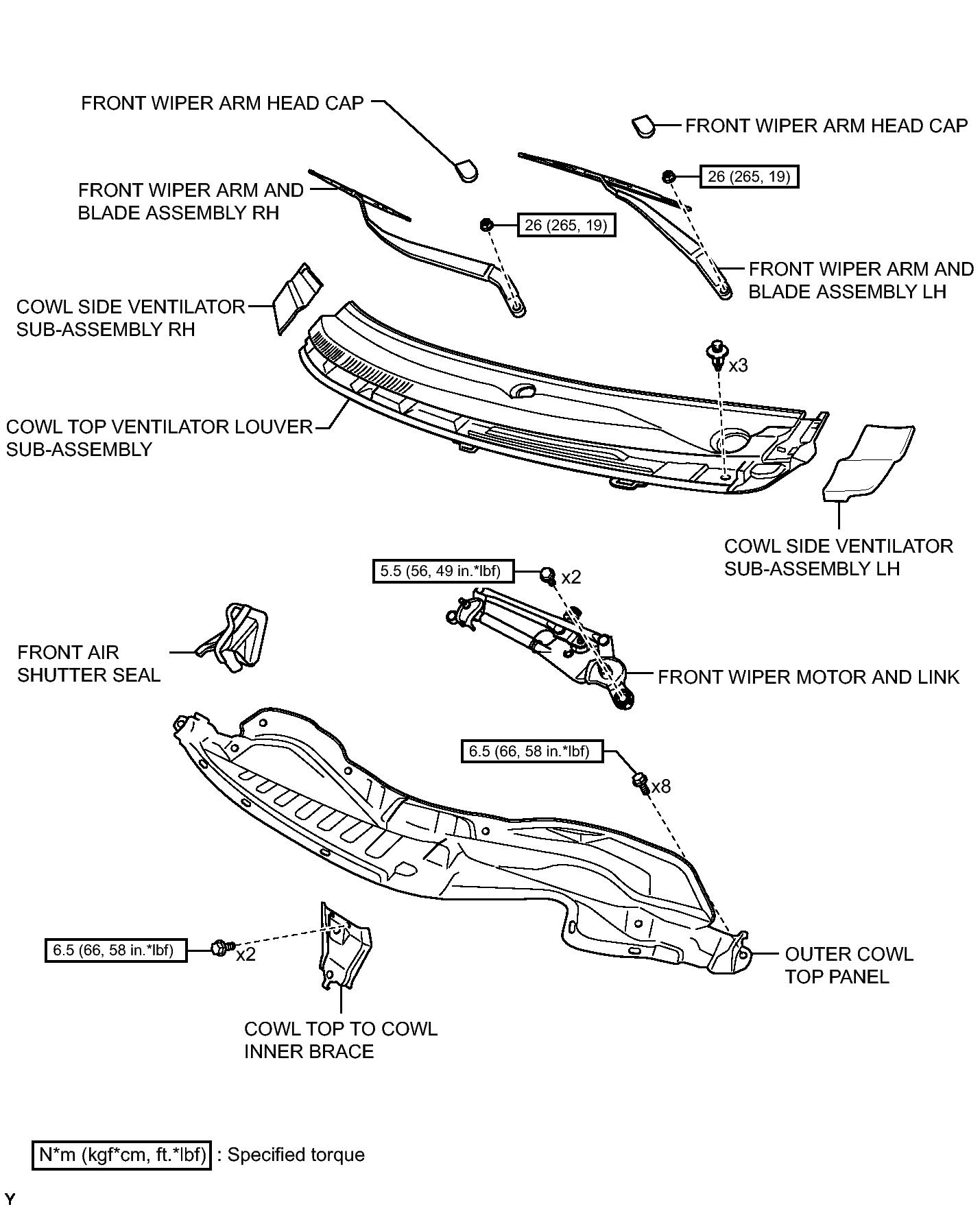

Fig 1: Brake Booster (Sedan) Replacement Components With Torque Specifications (1 Of 6)
GTY381676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

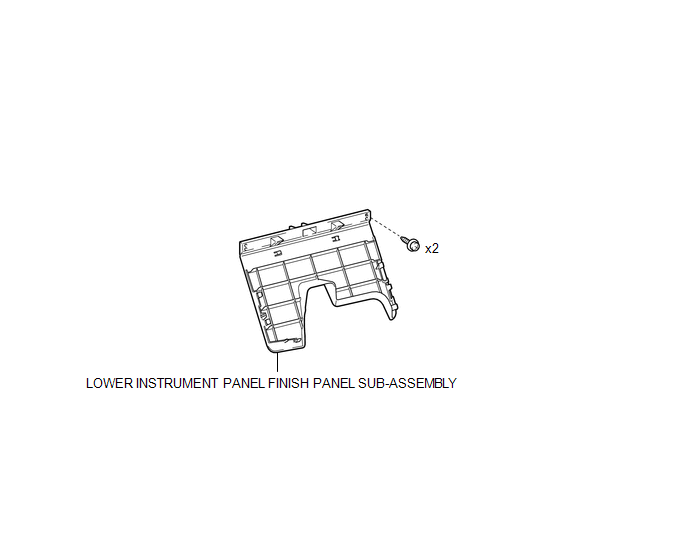

Fig 1: Brake Booster (Sedan) Replacement Components With Torque Specifications (2 Of 6)
GTY445811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Brake Booster (Sedan) Replacement Components With Torque Specifications (3 Of 6)
GTY374812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

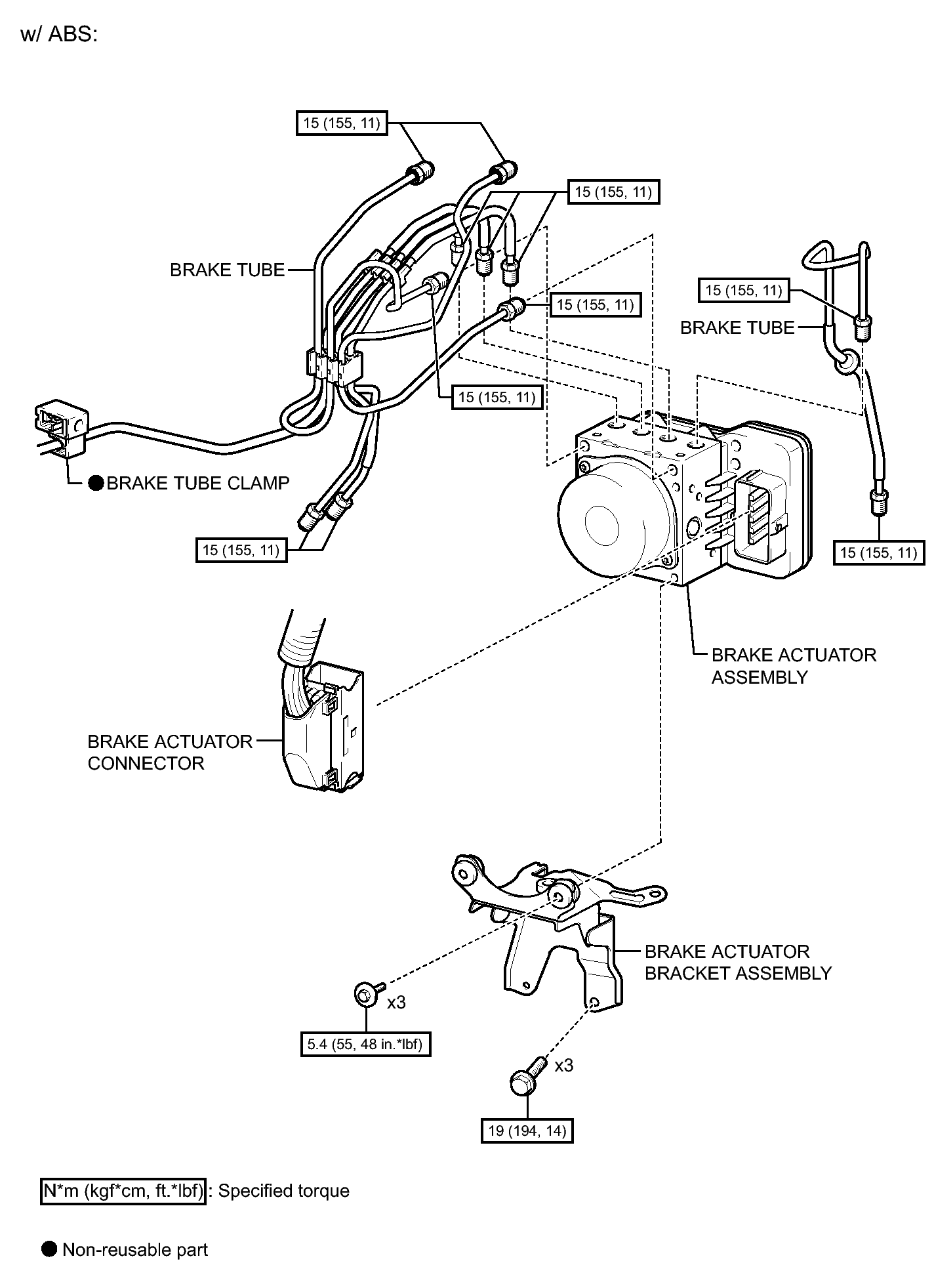

Fig 1: Brake Booster (Sedan) Replacement Components With Torque Specifications (4 Of 6)
GTY363718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

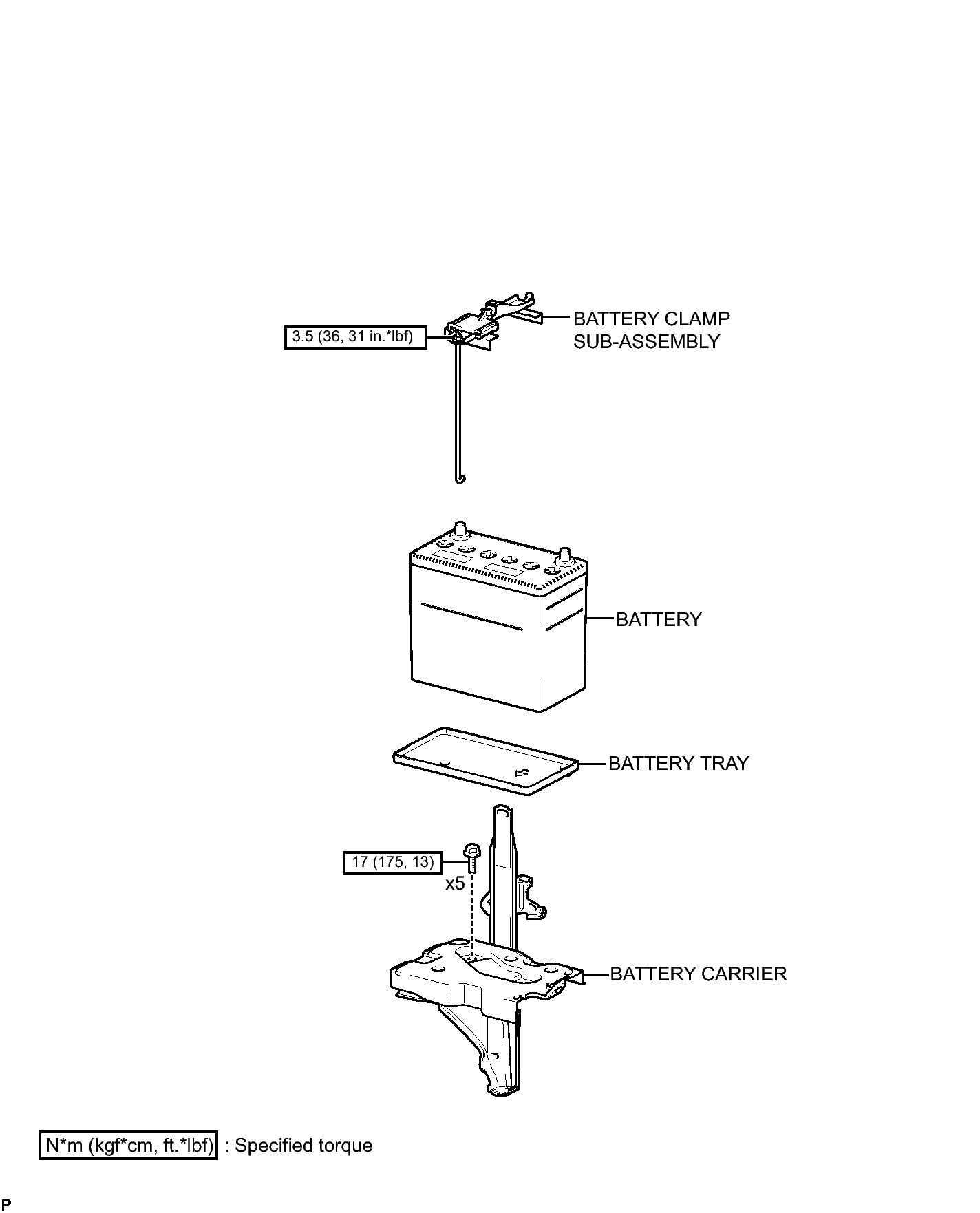

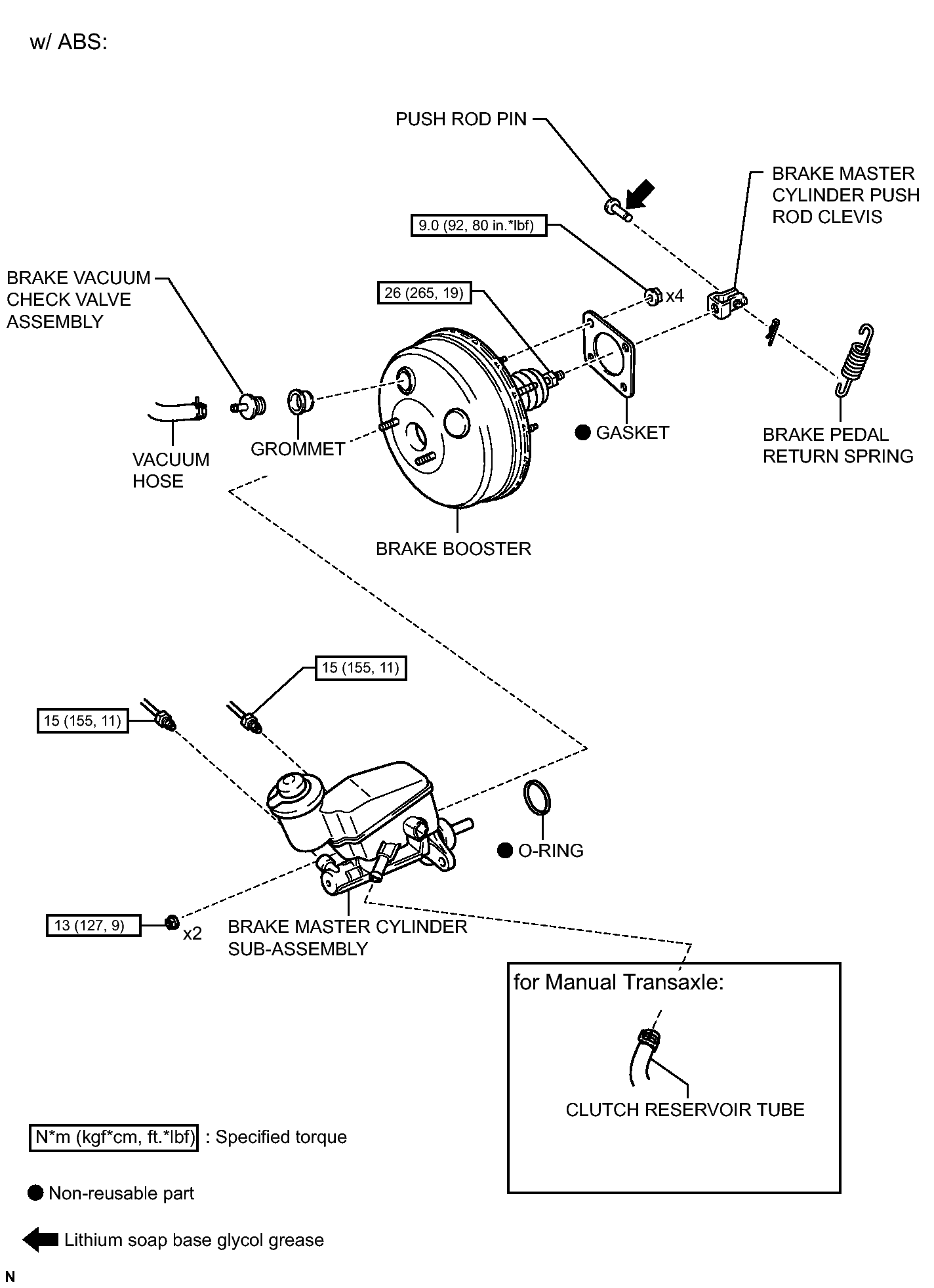

Fig 1: Brake Booster (Sedan) Replacement Components With Torque Specifications (5 Of 6)
GTY371491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

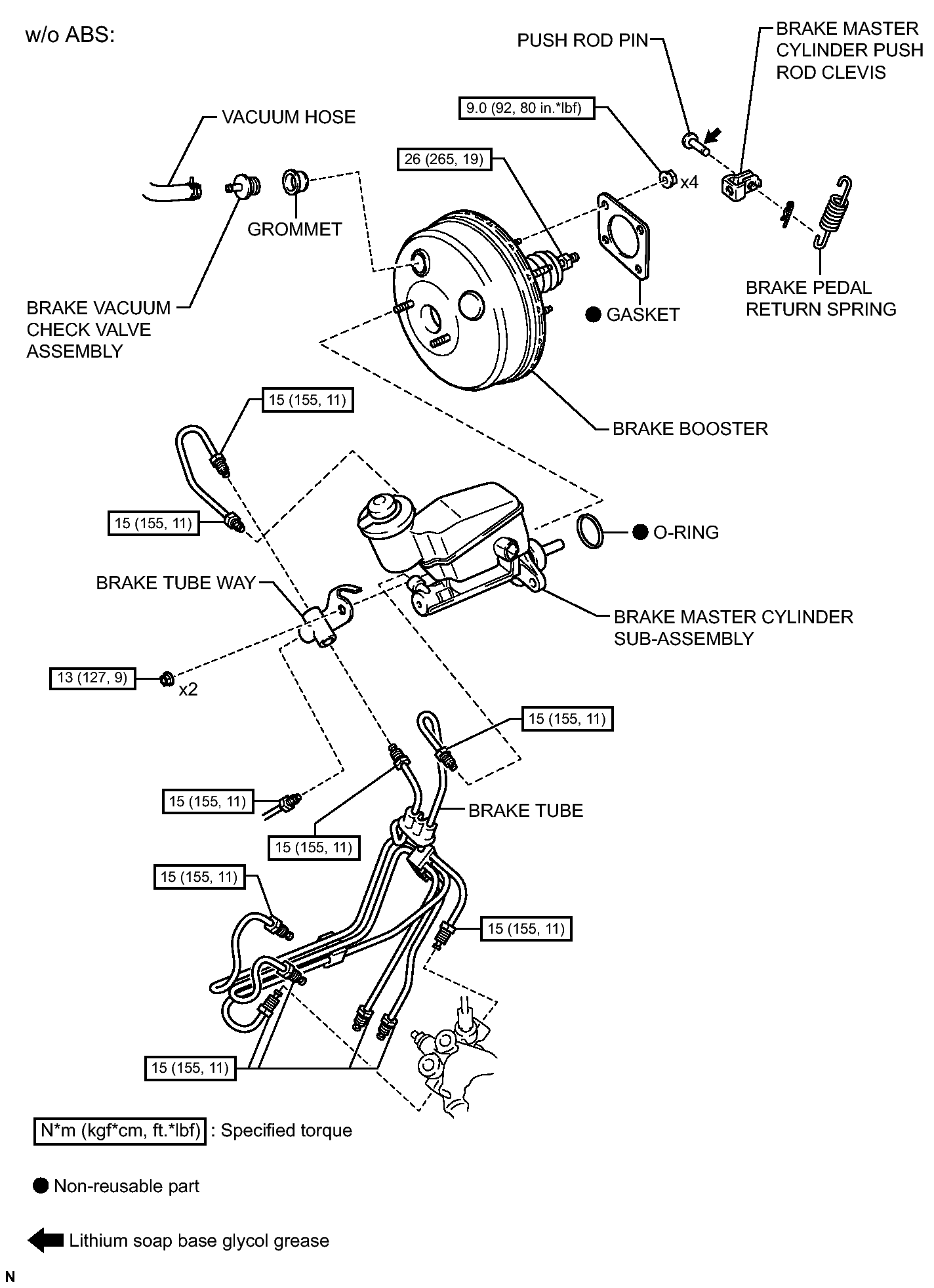

Fig 1: Brake Booster (Sedan) Replacement Components With Torque Specifications (6 Of 6)
GTY372454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
