Components [07/2014 - ]: Illustration

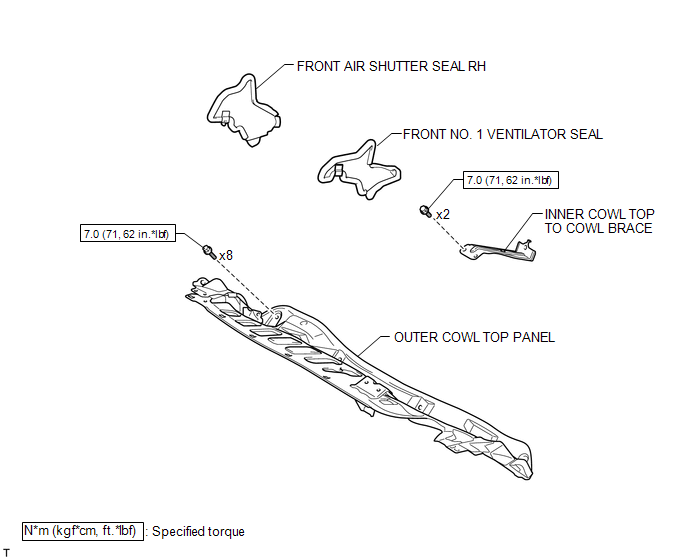

Fig 1: Brake Booster (Hatchback) Replacement Components With Torque Specifications (1 Of 2)
GTY474971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

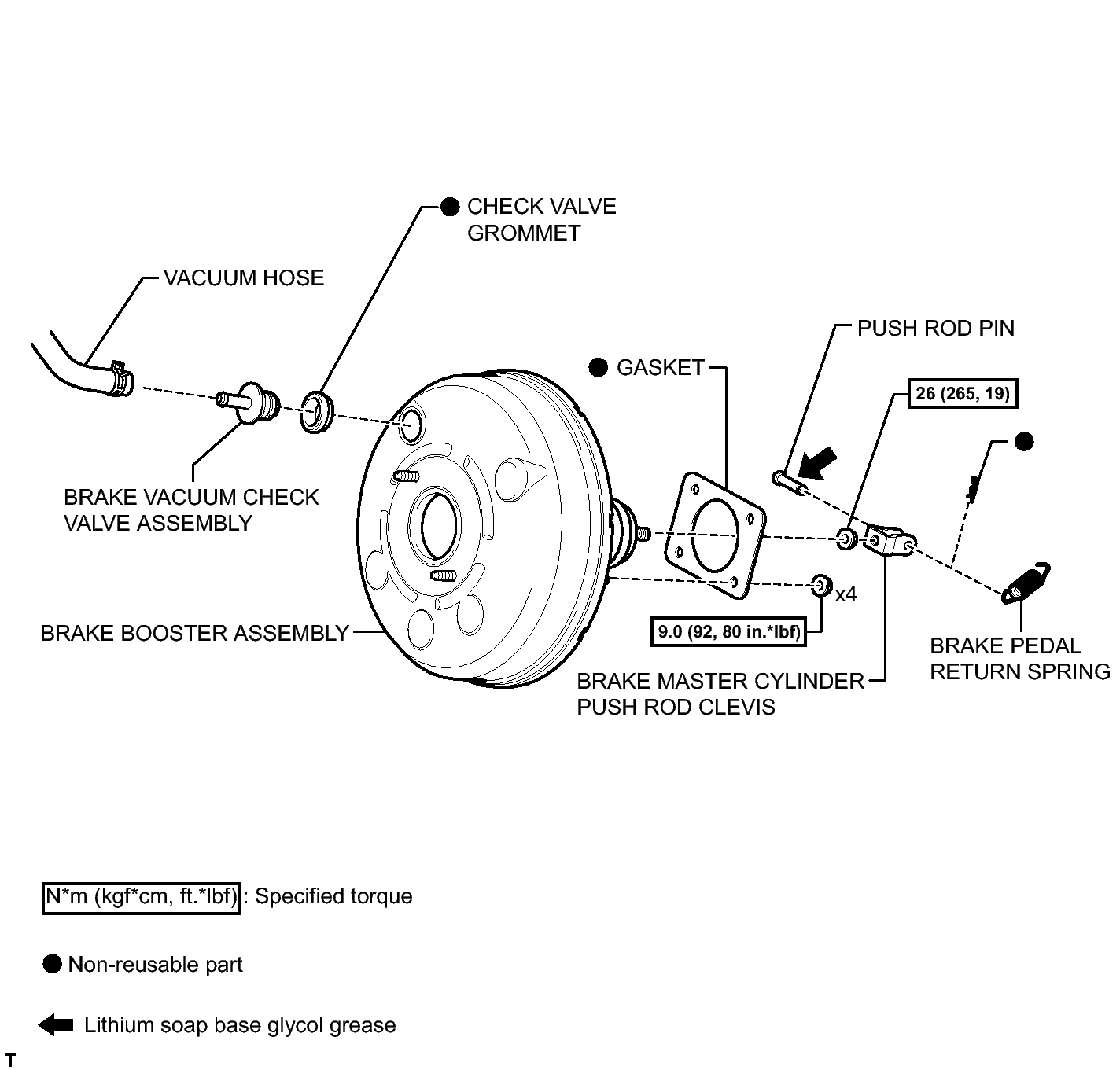

Fig 1: Brake Booster (Hatchback) Replacement Components With Torque Specifications (2 Of 2)
GTY335824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
