Disassembly [07/2014 - ]

  1. REMOVE COMBINATION METER GLASS
    1. Disengage the 8 claws to remove the combination meter glass.

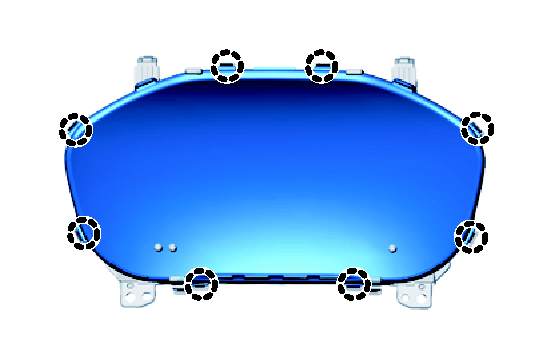

      Fig 1: Identifying Combination Meter Glass And Claws
      GTY477821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
