Parts Location [07/2014 - ]: Illustration

Fig 1: Identifying Meter / Gauge System Components Location (1 Of 4)
GTY329335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Meter / Gauge System Components Location (2 Of 4)
GTY333578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Meter / Gauge System Components Location (3 Of 4)
GTY325814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

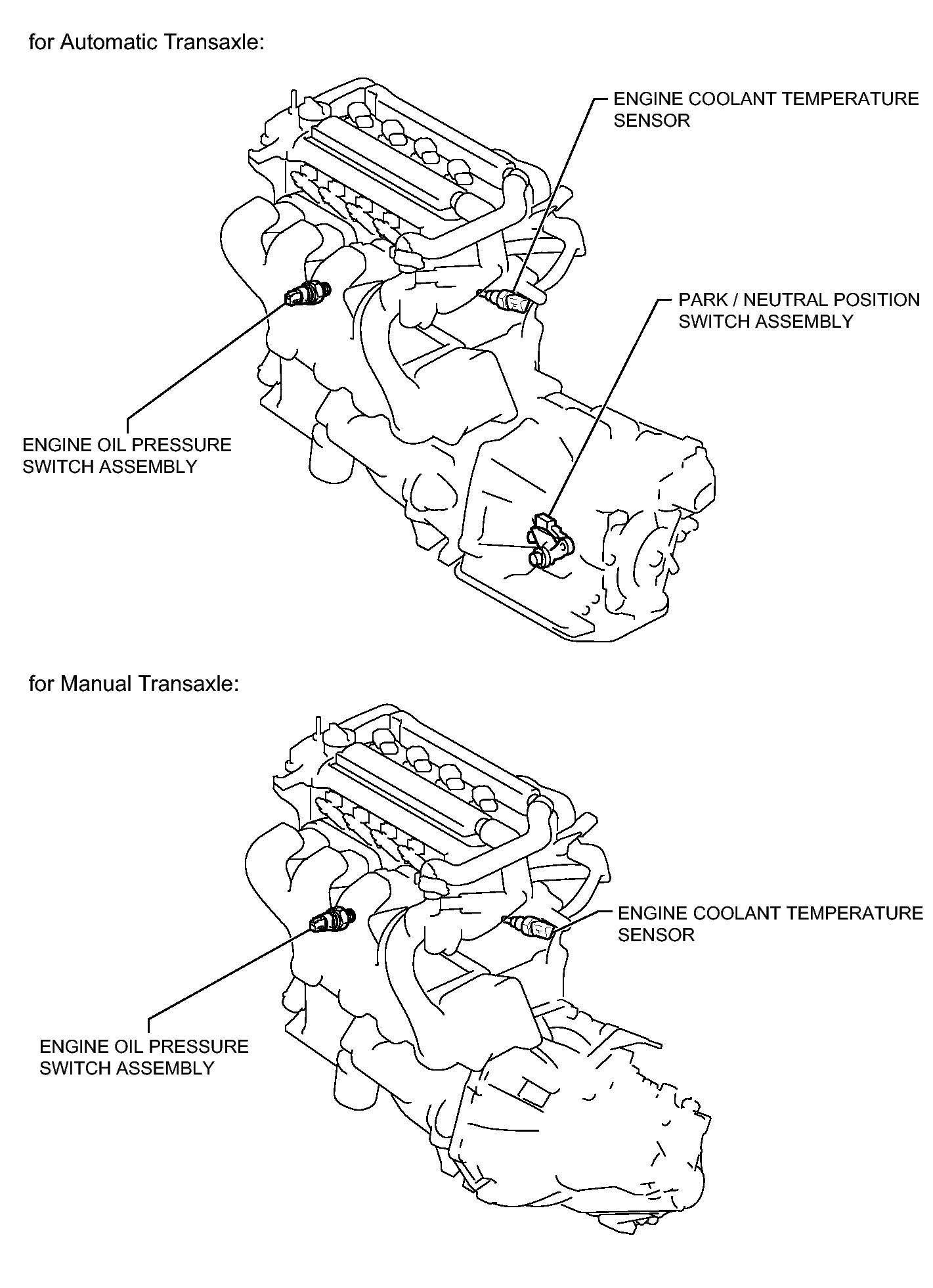

Fig 1: Identifying Meter / Gauge System Components Location (4 Of 4)
GTY475211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
