Speedometer Malfunction [07/2014 - ]: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Chassis / ABS/VSC/TRC / Data List.
5. According to the display on the Techstream, read the Data List.
   ABS/VSC/TRC



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Vehicle Speed	Maximum wheel speed sensor reading Min.: 0 km/h Max.: 326 km/h	Actual vehicle speed	Speed indicated on speedometer

   OK

   Vehicle speed displayed on the Techstream is approximately the same as the actual vehicle speed.

NG → See step   6

OK: Go to next step

1. Disconnect the A70 brake actuator assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   A70-11 (SP1) - Body ground	Ignition switch ON	11 to 14 V

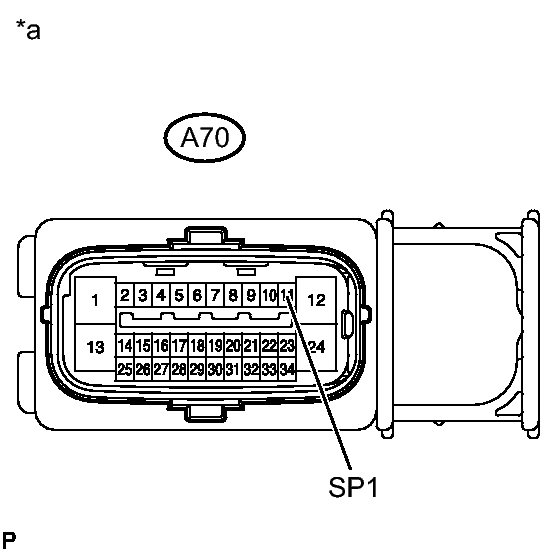

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to brake actuator assembly)

3. Reconnect the A70 brake actuator assembly connector.

NG → See step   4

OK: Go to next step

1. Check the input waveform.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Remove the combination meter assembly with the connector(s) still connected.
   2. Connect an oscilloscope to terminal D100-5 (SI) and body ground.
   3. Turn the ignition switch to ON.
   4. Turn the wheel slowly.
   5. Check the signal waveform according to the condition(s) in the table below.

      Standard

      Item	Condition
      Tool setting	5 V/DIV., 20 ms./DIV.
      Condition	Driving at approx. 20 km/h

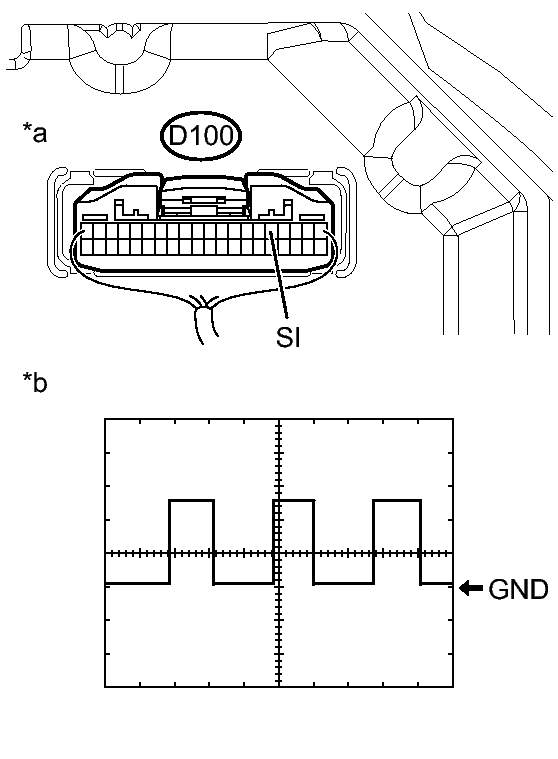

      TEXT IN ILLUSTRATION



      *a	Component with harness connected (Combination Meter Assembly)
      *b	Waveform

      OK

      The waveform is displayed as shown in the illustration.

      HINT:

      As the vehicle speed increases, the cycle of the waveform narrows.

NG → See step   8

OK → See step   5

1. Disconnect the D100 combination meter assembly connector.
2. Disconnect the A70 brake actuator assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   D100-5 (SI) - A70-11 (SP1)	Always	Below 1 Ω
   D100-5 (SI) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   7
