DTC B1507: Open in Turn Signal Circuit; DTC B1508: Short in Turn Signal / Hazard Flasher Circuit [07/2014 - ]: Wiring Diagram

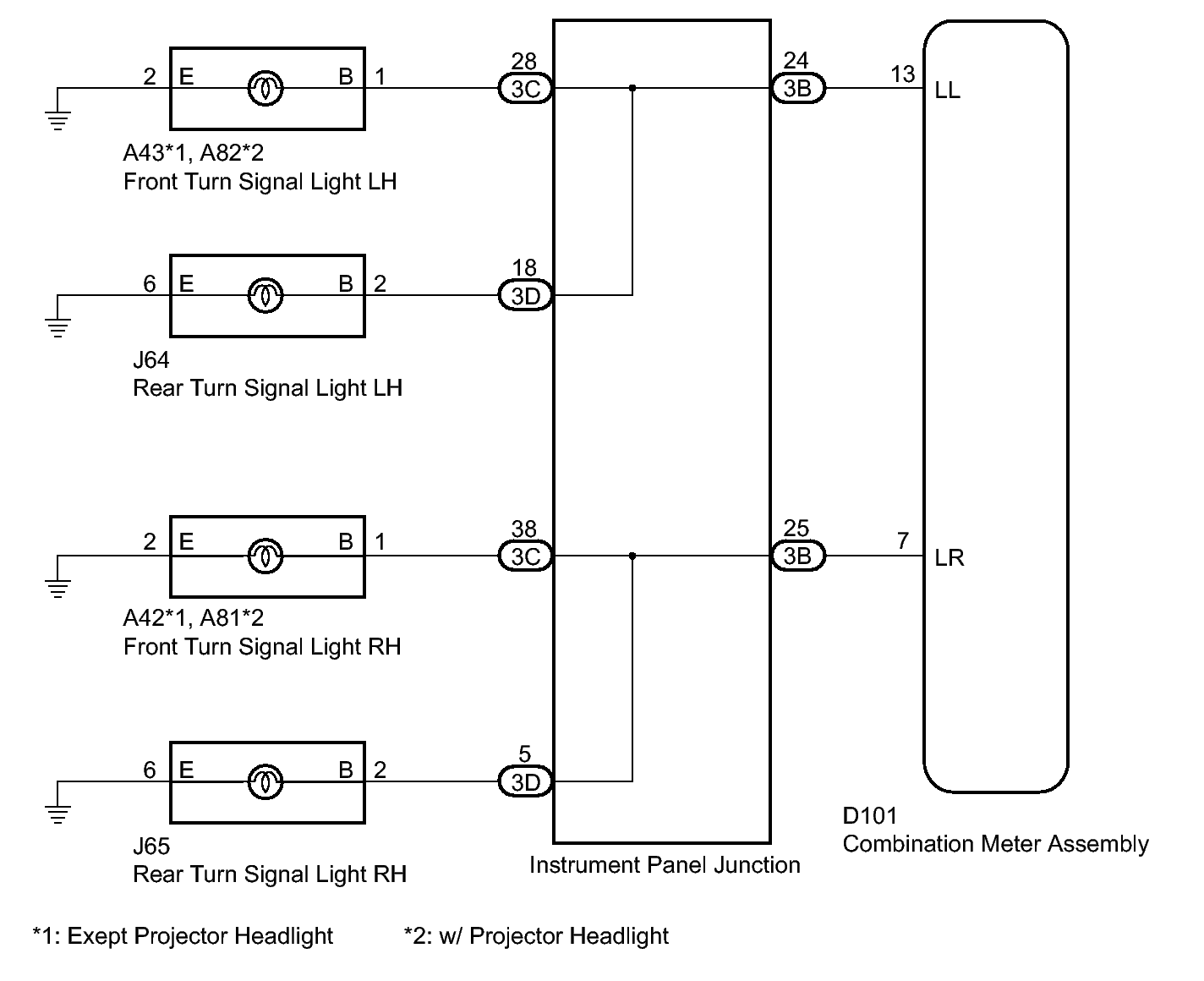

Fig 1: Combination Meter Assembly Wiring Diagram
GTY480686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
