Speed Signal Circuit [07/2014 - ]: Wiring Diagram

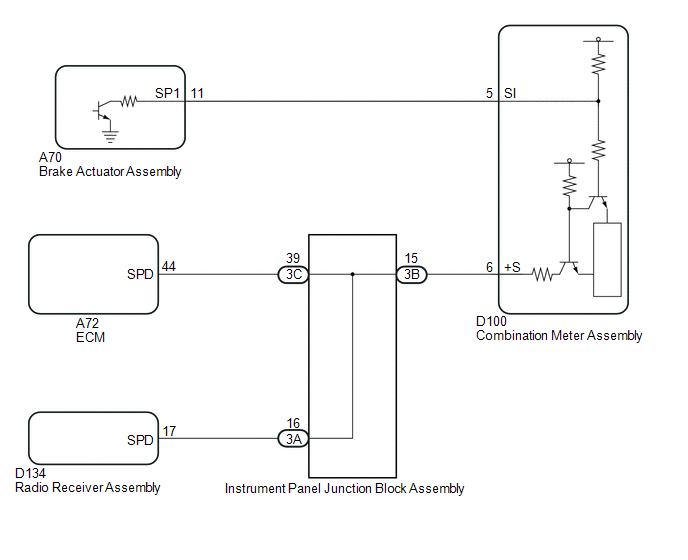

Fig 1: Speed Signal Circuit Diagram

GTY475329

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
