System Diagram [07/2014 - ]

  1. DAYTIME RUNNING LIGHT SYSTEM

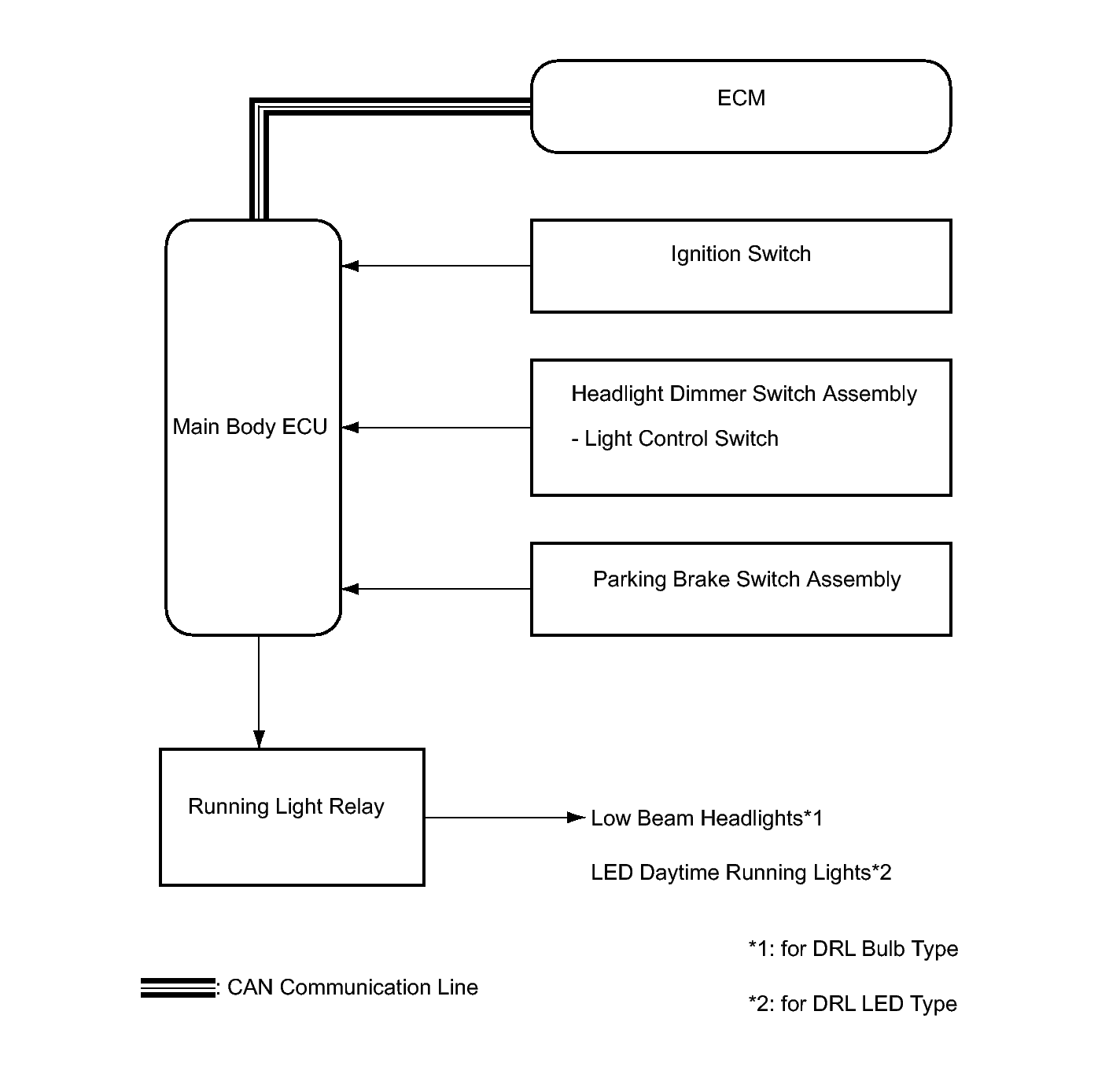

    Fig 1: Daytime Running Light System Diagram
    GTY474283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    COMMUNICATION TABLE

    Transmitter Receiver Line Data Name
    ECM Main Body ECU CAN Engine speed signal
