Headlight Relay Circuit [07/2014 - ]: Wiring Diagram

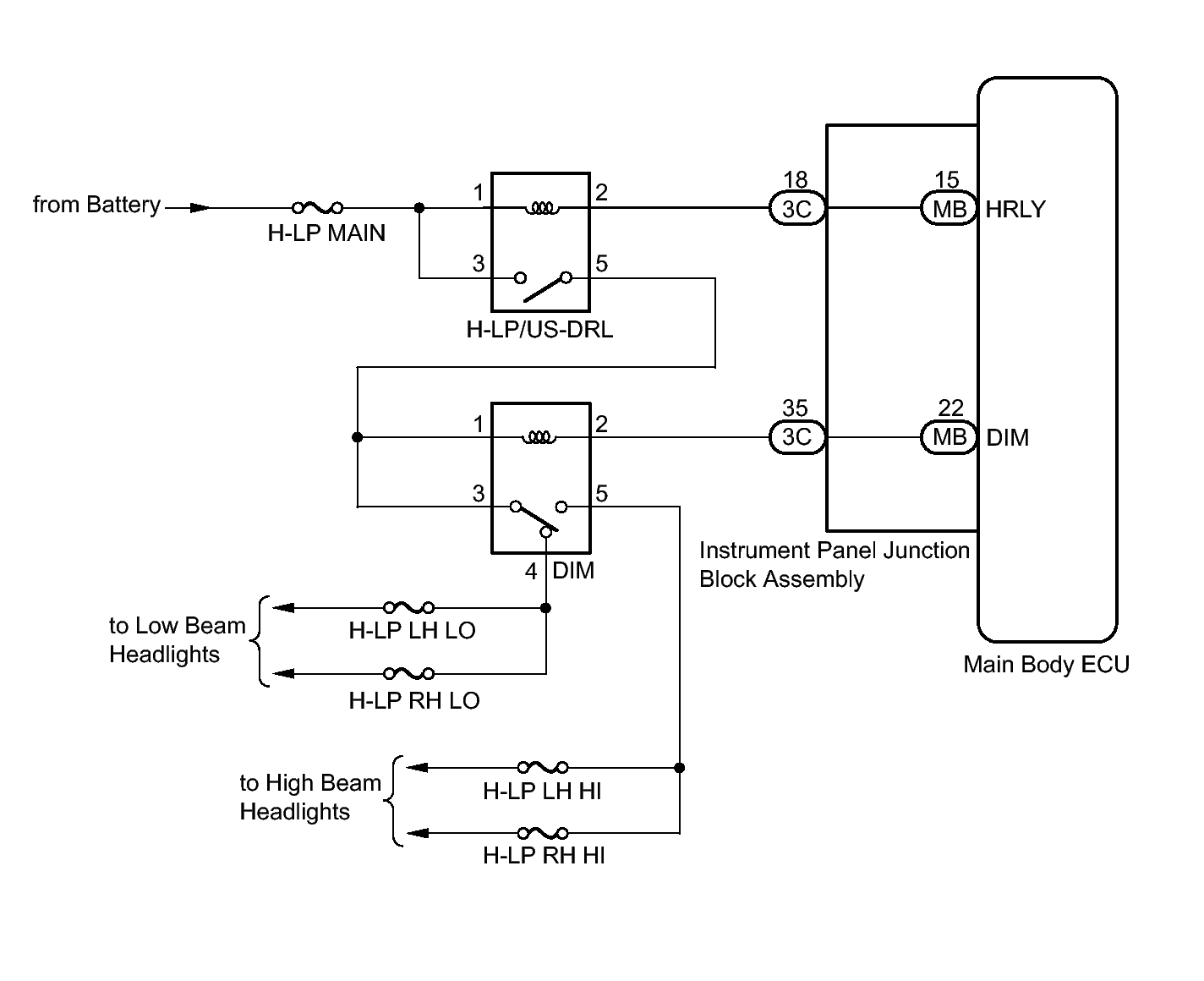

Fig 1: Headlight Relay Circuit Wiring Diagram

GTY477529

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
