Front Fog Light Circuit [07/2014 - ]: Wiring Diagram

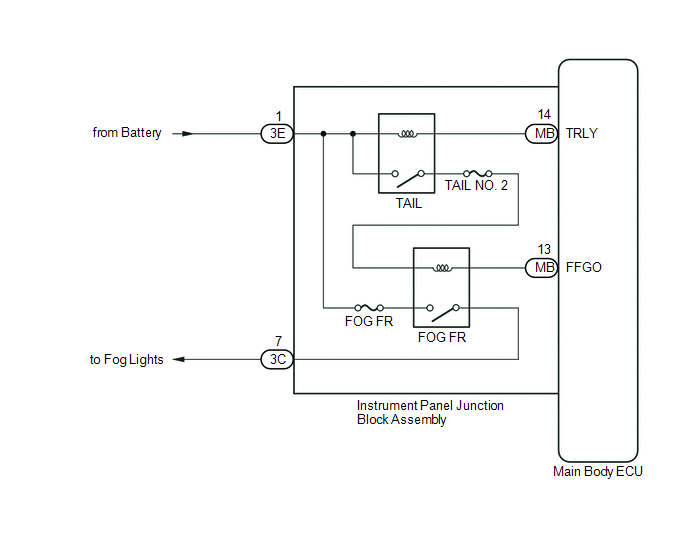

Fig 1: Front Fog Light Circuit Wiring Diagram

GTY429422

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
