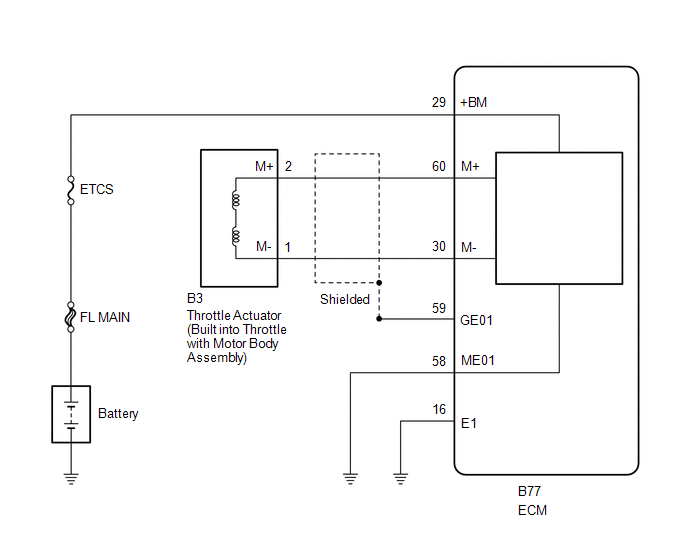

DTC P2102, P2103; Throttle Actuator Control Motor Circuit Low [11/2013 - ]: Wiring Diagram

GTY362510

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
