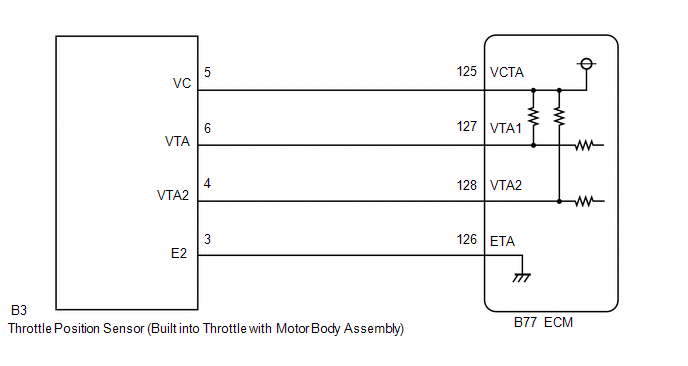

DTC P0120-P0123, P0220, P0222, P0223, P2135; Throttle / Pedal Position Sensor / Switch "A" Circuit Malfunction [11/2013 - ]: Wiring Diagram

GTY366230

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
