SFI System [2AR-FE] (Diagnostic Codes) (Except Hybrid) (2 Of 7)
>>
SFI System
>>
DTC P0037, P0038, P0141, P102D; Oxygen Sensor Heater Control Circuit Low (Bank 1 Sensor 2) [11/2013 - 08/2014]
>>

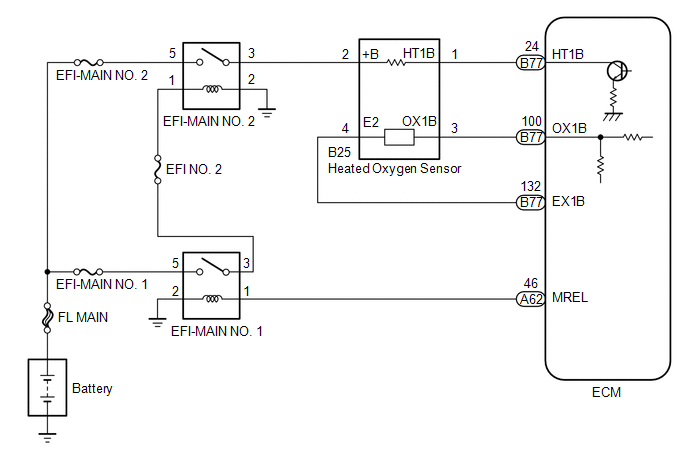

Wiring Diagram
DTC P0037, P0038, P0141, P102D; Oxygen Sensor Heater Control Circuit Low (Bank 1 Sensor 2) [11/2013 - 08/2014]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
