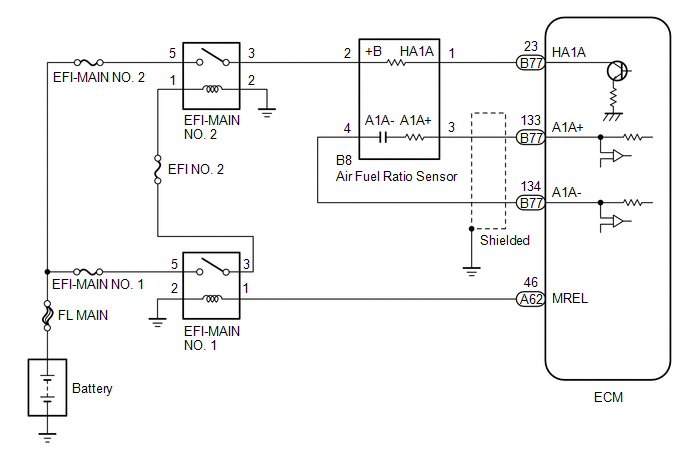

DTC P0031, P0032, P101D; Oxygen (A/F) Sensor Heater Control Circuit Low (Bank 1 Sensor 1) [11/2013 - 08/2014]: Wiring Diagram

GTY368164

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
