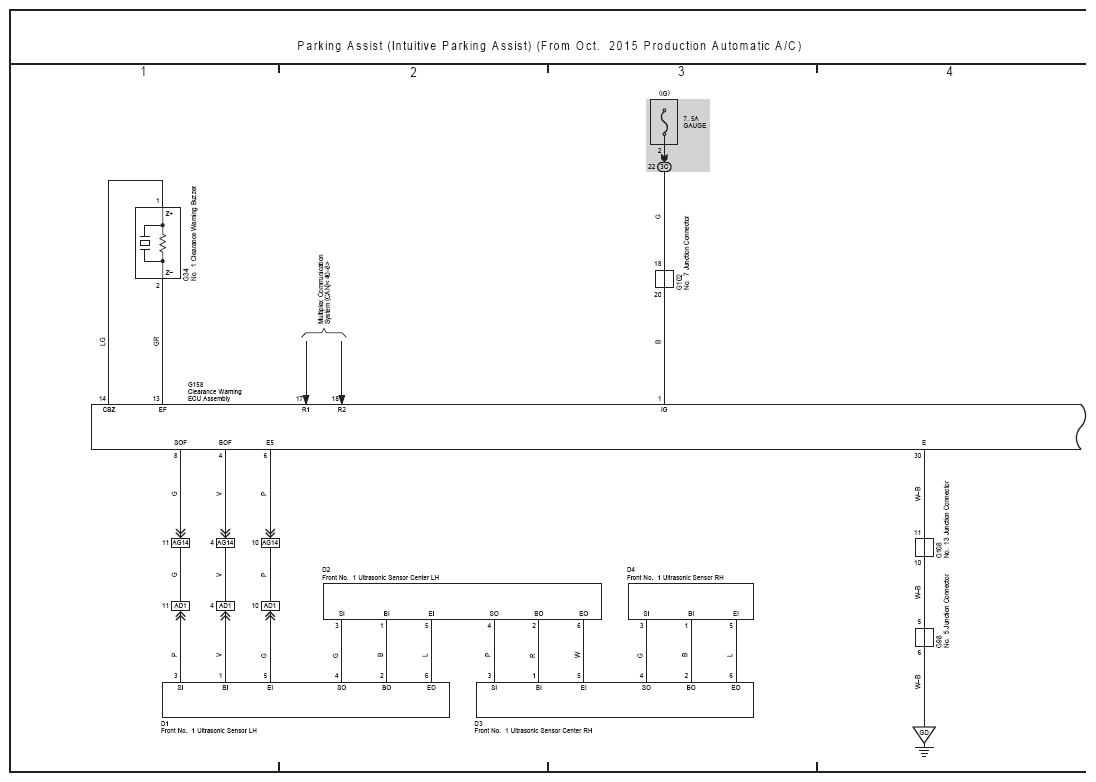

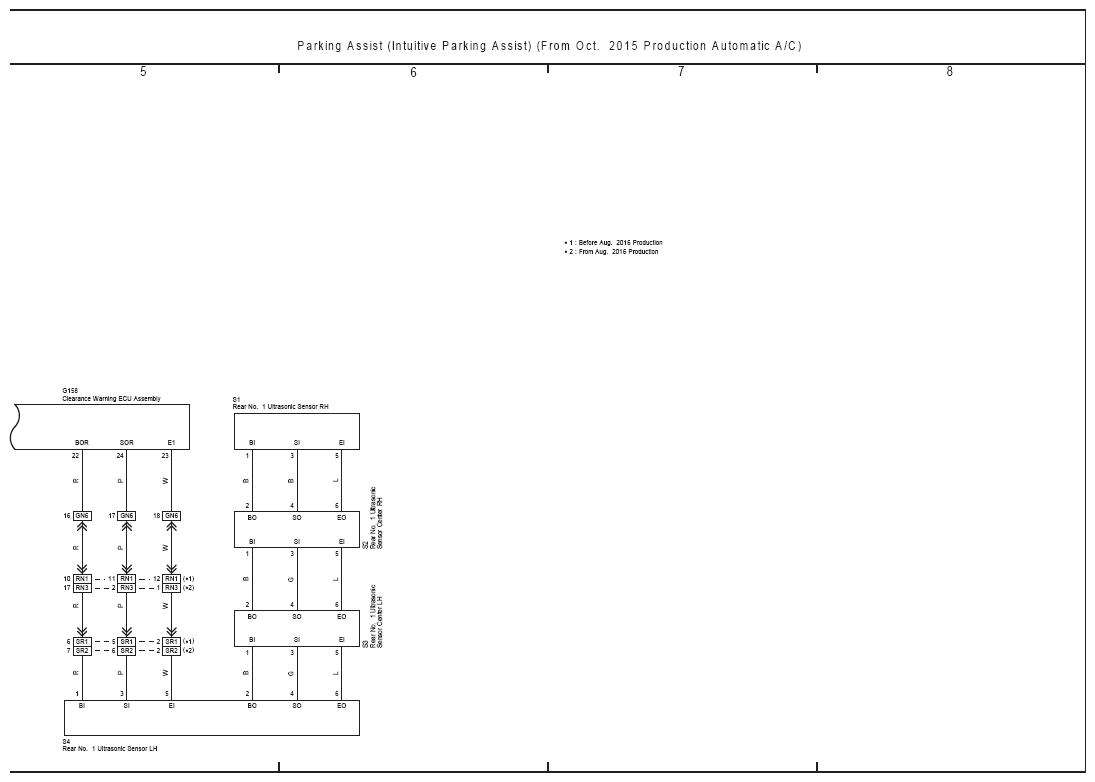

Parking Assist (Intuitive Parking Assist) (From Oct. 2015 Production Automatic A/C)

G12232769

G12232770
