Home >> Toyota >> 2015 >> RAV4 XLE, FWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Overall Electrical Wiring Diagram (Except Hybrid) >> Overall Electrical Wiring Diagram >> Parking Assist (Intuitive Parking Assist) (Except From Oct. 2015 Production Automatic A/C)

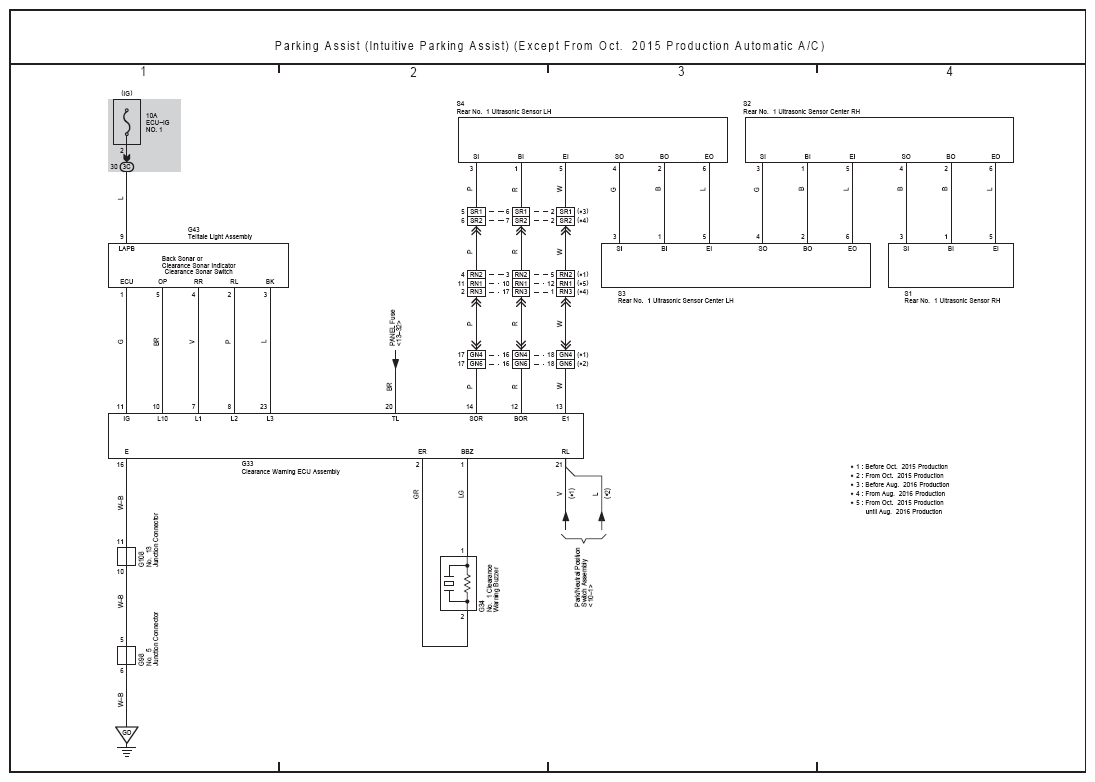

Parking Assist (Intuitive Parking Assist) (Except From Oct. 2015 Production Automatic A/C)

G12232768
