Disassembly [10/2015 - ]: Procedure

REMOVE FRONT TURN SIGNAL LIGHT SOCKET

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a Matchmark

*b Unlock Position Mark
1. Turn the front turn signal light socket counterclockwise until the matchmark is aligned with the unlock position mark to remove the front turn signal light socket.
REMOVE FRONT TURN SIGNAL LIGHT BULB

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the front turn signal light bulb from the front turn signal light socket.

REMOVE FRONT SIDE MARKER LIGHT SOCKET

Turn the front side marker light socket clockwise until the matchmark is aligned with the unlock position mark to remove the front side marker light socket.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Matchmark
*b	Unlock Position Mark

REMOVE FRONT SIDE MARKER LIGHT BULB

Remove the front side marker light bulb from the front side marker light socket.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE NO. 1 HEADLIGHT ECU SUB-ASSEMBLY LH

NOTE:

If the light control ECU is removed, make sure to replace the headlight gasket with a new one.

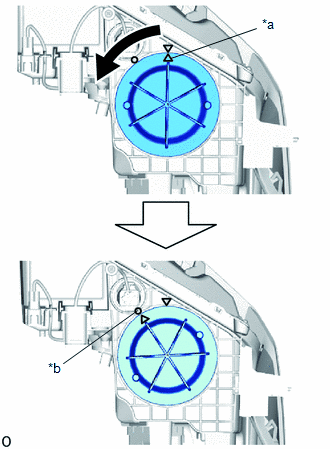

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Matchmark
*b	Unlock Position Mark

Turn the ECU base counterclockwise until the matchmark is aligned with the unlock position mark to remove the ECU base.

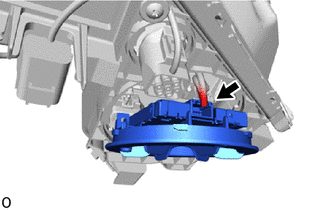

Disconnect the connector.

Remove the 2 screws and No. 1 headlight ECU sub-assembly LH from the ECU base.

REMOVE HEADLIGHT GASKET

Remove the headlight gasket from the ECU base.

NOTE:

If the headlight gasket is removed, replace it with a new one.
