Installation [12/2012 - ]: Procedure

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the front stabilizer bar bushing to the front stabilizer bar as shown in the illustration.
   NOTE:

   • Install the front stabilizer bar bushing so that the dust lips face the outside of the vehicle.
   • Install the front stabilizer bar bushing so that the cutouts face the rear of the vehicle.

HINT:

Use the same procedure described for the LH side.

1. Install the front stabilizer bar to the front suspension crossmember so that the identification mark is positioned on the right side of the vehicle.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Identification Mark	*b	Front of the Vehicle
   *c	Top of the Vehicle	-	-

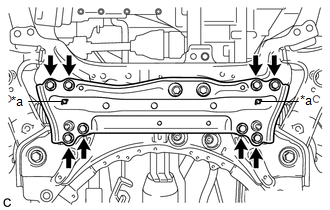

1. Install the front suspension member brace with the 8 bolts.

   Torque: 92 N*m (938 kgf*cm, 68 ft.*lbf)

   NOTE:

   After installing the front suspension member brace, mark sure that the protrusions of the front stabilizer bar bushings are visible.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protrusion

1. Temporarily install the front lower No. 1 suspension arm sub-assembly LH to the front suspension crossmember sub-assembly with the 2 bolts and nut.
   NOTE:

   Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut fixed in place.

1. Support the front suspension crossmember sub-assembly with an engine lifter using 4 attachments or equivalent tools.
   NOTE:

   • Make sure to secure the front suspension crossmember sub-assembly to prevent it from dropping.
   • Use the attachments to keep the front suspension crossmember sub-assembly level.
   • The front suspension crossmember sub-assembly is a heavy component. Make sure that it is supported securely.
2. Tighten the bolts on the left and right sides while alternately inserting SST into the left and right side reference holes in the front suspension crossmember sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front of the Vehicle	*b	OK
   *c	NG	-	-

   • SST: 09670-00020

   Torque: 137 N*m (1397 kgf*cm, 101 ft.*lbf)

3. Lower the engine lifter.

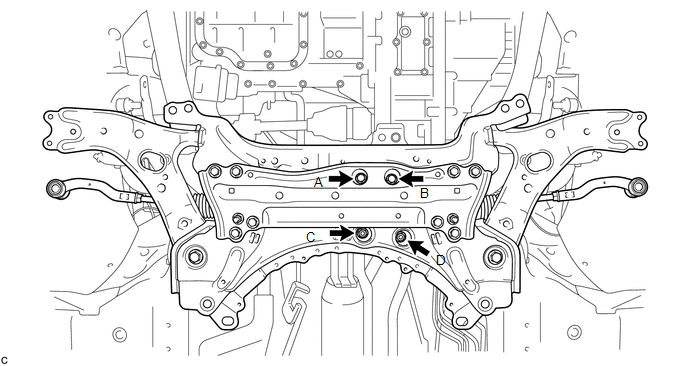

4. Install the rear engine mounting insulator with bolts A and B, and nuts C and D by tightening them in several steps.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Bolt A, B, Nut C, D

   Torque: 95 N*m (969 kgf*cm, 70 ft.*lbf)

   NOTE:

   Temporarily tighten bolt A, and then fully tighten the 2 bolts and 2 nuts in the order of B, D, C, and A.

1. Install the front suspension member rear brace LH with the 3 bolts.

   Bolt A

   Torque: 137 N*m (1397 kgf*cm, 101 ft.*lbf)

   Bolt B, C

   Torque: 93 N*m (948 kgf*cm, 69 ft.*lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Temporarily tighten bolts A and B, and then fully tighten the 3 bolts in the order of C, B, and A.

HINT:

Use the same procedure described for the LH side.

1. Install the front suspension member reinforcement LH with the 4 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 99 N*m (1010 kgf*cm, 73 ft.*lbf)

1. Install the front suspension member reinforcement RH with the 4 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 99 N*m (1010 kgf*cm, 73 ft.*lbf)

1. Connect the front lower No. 1 suspension arm sub-assembly to the lower arm ball joint with the bolt and 2 nuts.

   Torque: 92 N*m (938 kgf*cm, 68 ft.*lbf)

HINT:

Use the same procedure described for the LH side.

Refer to PROCEDURE - Step 11

HINT:

Use the same procedure described for the LH side.

1. Install the front stabilizer link assembly LH with the 2 nuts.

   Torque: 74 N*m (755 kgf*cm, 55 ft.*lbf)

   HINT:

   If the ball joint turns together with the nut, use a 6 mm hexagon wrench to hold the stud bolt.

HINT:

Use the same procedure described for the LH side.

Refer to PROCEDURE - Step 3

Refer to PROCEDURE - Step 13

Refer to PROCEDURE - Step 6

1. Install the rear engine under cover LH with the 3 clips.

1. Install the rear engine under cover RH with the 3 clips.

Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)

1. Lower the vehicle.
2. Bounce the vehicle up and down at the corners several times to stabilizer the suspension.

1. Using SST, tighten bolt A.
   • SST: 09961-01270

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Fulcrum Length
   *b	Turn

   without SST

   Torque: 233 N*m (2376 kgf*cm, 172 ft.*lbf)

   with SST

   Torque: 172 N*m (1754 kgf*cm, 127 ft.*lbf)

   NOTE:

   • Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut fixed in place.
   • Use a torque wrench with a fulcrum length of 425 mm (1.39 ft.).
   • The torque value for use with SST is effective when SST is parallel to the torque wrench.
   • The final torque must be applied under standard vehicle height conditions.
2. Tighten bolt B.

   Torque: 214 N*m (2182 kgf*cm, 158 ft.*lbf)

Refer to PROCEDURE - Step 75

Refer to PROCEDURE - Step 76

Refer to ADJUSTMENT [12/2012 - 10/2015] , or refer to ADJUSTMENT [10/2015 - 08/2016] , or refer to ADJUSTMENT [08/2016 - 08/2017] , or refer to ADJUSTMENT [08/2017 - ]
