Installation [12/2012 - ]: Procedure

  1. TEMPORARILY INSTALL FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH
    1. Temporarily install the front lower No. 1 suspension arm sub-assembly LH to the front suspension crossmember sub-assembly with the 2 bolts and nut.
      NOTE:

      Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut fixed in place.

  2. INSTALL FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY
    1. Support the front suspension crossmember sub-assembly with an engine lifter using 4 attachments or equivalent tools.
      NOTE:
      • Make sure to secure the front suspension crossmember sub-assembly to prevent it from dropping.
      • Use the attachments to keep the front suspension crossmember sub-assembly level.
      • The front suspension crossmember sub-assembly is a heavy component. Make sure that it is supported securely.

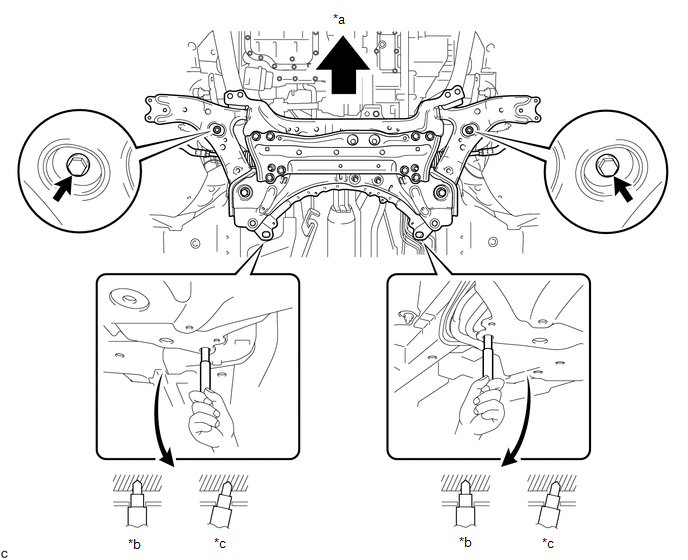

    2. Tighten the 2 bolts on the left and right sides while alternately inserting SST into the left and right side reference holes in the front suspension crossmember sub-assembly.
      GTY380291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front of the Vehicle *b OK
      *c NG - -
      • SST: 09670-00020

      Torque: 137 N*m (1397 kgf*cm, 101 ft.*lbf)

    3. Lower the engine lifter.

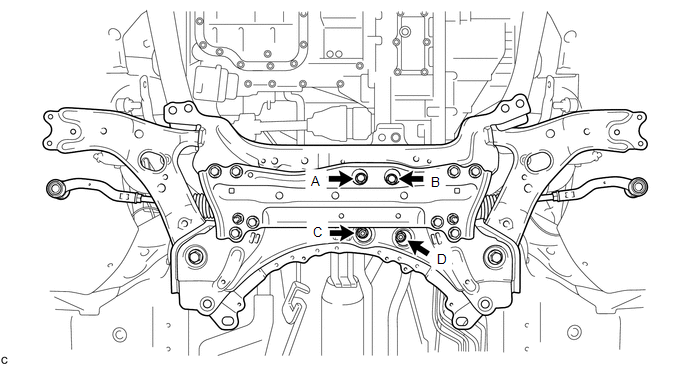

    4. Install the rear engine mounting insulator with bolts A and B, and nuts C and D by tightening them in several steps.
      GTY382207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Bolt A, B, Nut C, D

      Torque: 95 N*m (969 kgf*cm, 70 ft.*lbf)

      NOTE:

      Temporarily tighten bolt A, and then fully tighten the 2 bolts and 2 nuts in the order of B, D, C, and A.

  3. INSTALL FRONT SUSPENSION MEMBER REAR BRACE LH

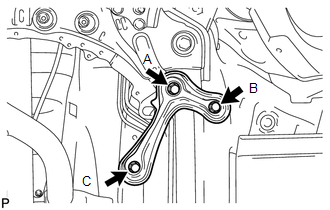

    1. Install the front suspension member rear brace LH with the 3 bolts.

      Bolt A

      Torque: 137 N*m (1397 kgf*cm, 101 ft.*lbf)

      Bolt B, C

      Torque: 93 N*m (948 kgf*cm, 69 ft.*lbf)

      GTY367592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Temporarily tighten bolts A and B, and then fully tighten the 3 bolts in the order of C, B, and A.

  4. INSTALL FRONT SUSPENSION MEMBER REAR BRACE RH

    HINT:

    Use the same procedure described for the LH side.

  5. INSTALL FRONT SUSPENSION MEMBER REINFORCEMENT LH

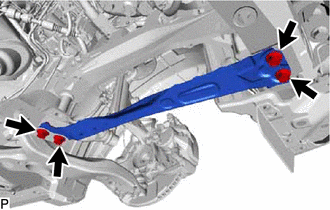

    1. Install the front suspension member reinforcement LH with the 4 bolts.
      GTY370839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 99 N*m (1010 kgf*cm, 73 ft.*lbf)

  6. INSTALL FRONT SUSPENSION MEMBER REINFORCEMENT RH

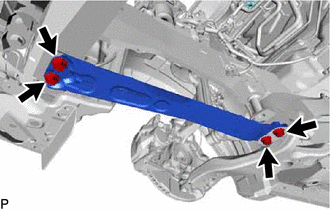

    1. Install the front suspension member reinforcement RH with the 4 bolts.
      GTY370835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 99 N*m (1010 kgf*cm, 73 ft.*lbf)

  7. CONNECT FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH
    1. Connect the front lower No. 1 suspension arm sub-assembly to the lower arm ball joint with the bolt and 2 nuts.

      Torque: 92 N*m (938 kgf*cm, 68 ft.*lbf)

  8. CONNECT FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  9. CONNECT TIE ROD END SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 11

  10. CONNECT TIE ROD END SUB-ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  11. CONNECT FRONT STABILIZER LINK ASSEMBLY LH

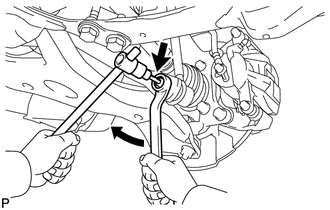

    1. Connect the front stabilizer link assembly LH to the front stabilizer bar with the nut.

      Torque: 74 N*m (755 kgf*cm, 55 ft.*lbf)

      HINT:

      If the ball joint turns together with the nut, use a 6 mm hexagon wrench to hold the stud bolt.

      GTY371891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. CONNECT FRONT STABILIZER LINK ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  13. INSTALL NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  14. CONNECT NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY

    Refer to PROCEDURE - Step 1

  15. INSTALL COLUMN HOLE COVER SILENCER SHEET

    Refer to PROCEDURE - Step 6

  16. INSTALL REAR ENGINE UNDER COVER LH
    1. Install the rear engine under cover LH with the 3 clips.
  17. INSTALL REAR ENGINE UNDER COVER RH
    1. Install the rear engine under cover RH with the 3 clips.
  18. INSTALL FRONT WHEELS

    Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)

  19. STABILIZE SUSPENSION
    1. Lower the vehicle.
    2. Bounce the vehicle up and down at the corners several times to stabilizer the suspension.
  20. TIGHTEN FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH

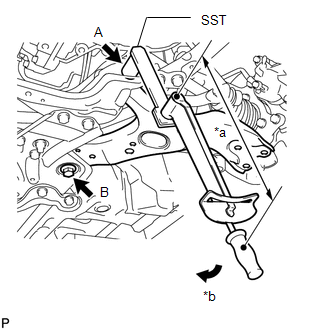

    1. Using SST, tighten bolt A.
      • SST: 09961-01270
      GTY366017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Fulcrum Length
      *b Turn

      without SST

      Torque: 233 N*m (2376 kgf*cm, 172 ft.*lbf)

      with SST

      Torque: 172 N*m (1754 kgf*cm, 127 ft.*lbf)

      NOTE:
      • Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut fixed in place.
      • Use a torque wrench with a fulcrum length of 425 mm (1.39 ft.).
      • The torque value for use with SST is effective when SST is parallel to the torque wrench.
      • The final torque must be applied under standard vehicle height conditions.
    2. Tighten bolt B.

      Torque: 214 N*m (2182 kgf*cm, 158 ft.*lbf)

  21. INSTALL FRONT FLOOR COVER

    Refer to PROCEDURE - Step 75

  22. INSTALL NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 76

  23. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT

    Refer to ADJUSTMENT [12/2012 - 10/2015] , or refer to ADJUSTMENT [10/2015 - 08/2016] , or refer to ADJUSTMENT [08/2016 - 08/2017] , or refer to ADJUSTMENT [08/2017 - ]
