Installation [12/2012 - ]: Procedure
- INSTALL NO. 3 FUEL TANK PROTECTOR
- Install a new No. 3 fuel tank protector to the fuel tank assembly.
- INSTALL BREATHER TUBE SUB-ASSEMBLY
- Install the breather tube sub-assembly to the fuel tank assembly and connect the quick connector.
Refer to PRECAUTION [12/2012 - ]
- Install the breather tube sub-assembly to the fuel tank assembly and connect the quick connector.
- INSTALL FUEL TUBE GROMMET
- Install the 3 fuel tube grommets to the fuel tank assembly.
- INSTALL NO. 5 FUEL TUBE CLAMP
- Install the No. 5 fuel tube clamp to the fuel tank assembly.
- INSTALL NO. 3 FUEL TUBE CLAMP
- Install the No. 3 fuel tube clamp to the fuel tank assembly.
- INSTALL FUEL TANK MAIN TUBE SUB-ASSEMBLY
- Install the fuel tank main tube sub-assembly and attach the 5 clamps.
- INSTALL FUEL SENDER GAUGE ASSEMBLY
See step 1
- INSTALL FUEL SUCTION TUBE ASSEMBLY WITH PUMP
See step 1
- INSTALL FUEL TANK VENT TUBE SET PLATE
See step 2
- CONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY
See step 3
- INSTALL FUEL TANK ASSEMBLY
- Set the fuel tank assembly on an engine lifter with attachments.
- Lift up the engine lifter.
- Attach the wire harness to the 3 clamps.
- Connect the fuel pump connector and sender gauge connector.NOTE:
Be careful not to cut the wiring.
- Install the No. 1 fuel tank band sub-assembly with the 2 bolts.
Torque: 45 N*m (459 kgf*cm, 33 ft.*lbf)
- Install the No. 1 fuel tank band sub-assembly LH with the 2 bolts.
Torque: 45 N*m (459 kgf*cm, 33 ft.*lbf)
- Install the No. 2 fuel tank band sub-assembly with the 2 bolts.
Torque: 45 N*m (459 kgf*cm, 33 ft.*lbf)
- Attach the 3 wire harness clamps and connect the connector.
- CONNECT BREATHER TUBE SUB-ASSEMBLY
- Connect the breather tube sub-assembly to the fuel tank filler pipe.
Refer to PRECAUTION [12/2012 - ]
- Connect the breather tube sub-assembly to the fuel tank filler pipe.
- CONNECT FUEL TANK VENT HOSE SUB-ASSEMBLY
- Attach the hose clamp and fuel tank vent hose sub-assembly.

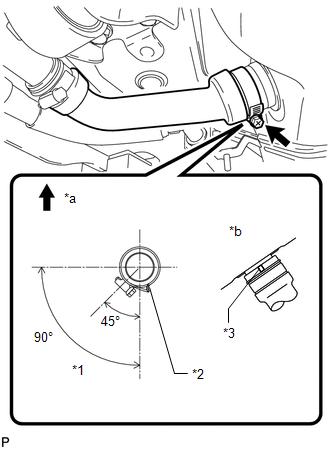

- CONNECT FUEL TANK TO FILLER PIPE HOSE
- INSTALL FUEL HOSE PROTECTOR
- Install the fuel hose protector to the fuel tank to filler pipe hose and attach the claw.
- CONNECT FUEL TANK TO CANISTER TUBE SUB-ASSEMBLY
- Connect the fuel tank to canister tube sub-assembly.
Refer to PRECAUTION [12/2012 - ]
- Connect the fuel tank to canister tube sub-assembly.
- CONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY
- Connect the fuel tank main tube sub-assembly.
Refer to PRECAUTION [12/2012 - ]
- Connect the fuel tank main tube sub-assembly.
- INSTALL NO. 1 FLOOR UNDER COVER
- Install the No. 1 floor under cover with the 2 nuts and attach the clip.
- INSTALL NO. 1 FUEL TANK PROTECTOR
- Install the No. 1 fuel tank protector with the nut and attach the 3 clips.
Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
- Install the No. 1 fuel tank protector with the nut and attach the 3 clips.
- INSTALL FRONT FLOOR COVER
- for Type A:
Install the front floor cover and attach the 4 clips.
- for Type B:
Install the front floor cover and attach the 5 clips.
- Install the bolt and nut.
for bolt
Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)
for nut
Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)
- for Type A:
- CONNECT PARKING BRAKE CABLE
- Connect the parking brake cable with the 2 bolts.
Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)
- Connect the parking brake cable with the 2 bolts.
- ADD FUEL
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [12/2012 - 10/2015] , or refer to INITIALIZATION [10/2015 - 08/2016] , or refer to INITIALIZATION [08/2016 - ]
- INSPECT FOR FUEL LEAK
See step 9
