Removal [12/2012 - ]: Procedure

  1. REMOVE NO. 1 ENGINE UNDER COVER

    See step  6

  2. REMOVE REAR ENGINE UNDER COVER RH

    See step  8

  3. DISCONNECT RADIATOR RESERVOIR ASSEMBLY

    See step  1

  4. REMOVE FAN AND GENERATOR V BELT

    See step  3

  5. REMOVE FRONT SUSPENSION MEMBER REINFORCEMENT RH

    See step  60

  6. REMOVE CRANKSHAFT PULLEY

    Refer to PROCEDURE - Step 18 [12/2012 - 08/2017] , or refer to PROCEDURE - Step 19 [08/2017 - ]

  7. REMOVE TIMING CHAIN COVER OIL SEAL
    1. Using a screwdriver, pry out the oil seal.

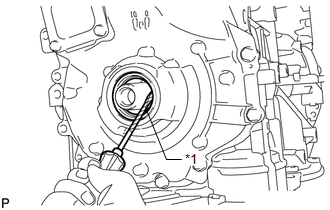

      GTY365441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Protective Tape
      NOTE:

      Do not damage the surface of the oil seal press fit hole or the crankshaft.

      HINT:

      Tape the screwdriver tip before use.
