Components [12/2012 - ]: Illustration

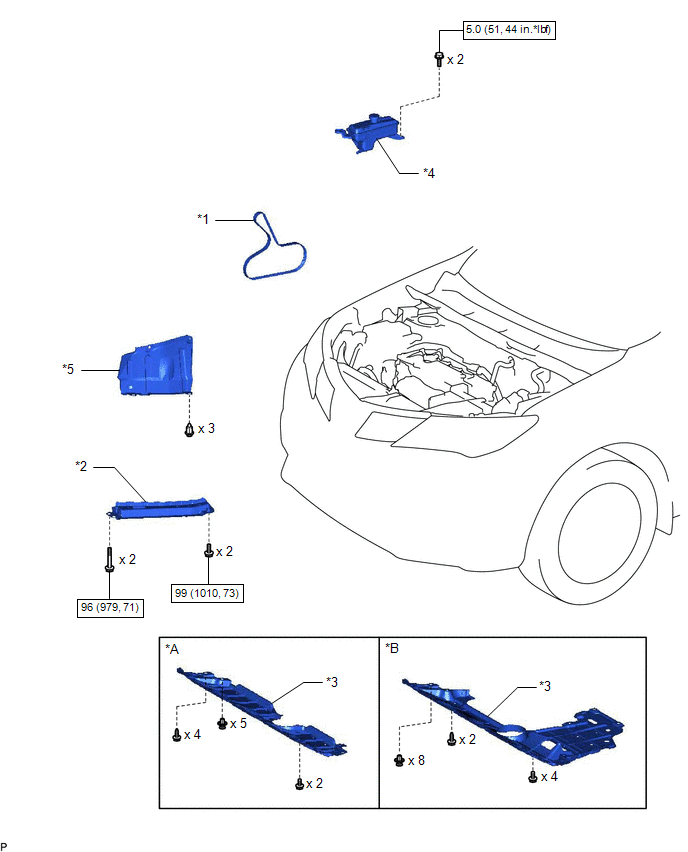

Fig 1: Front Crankshaft Oil Seal Replacement Components With Torque Specifications (1 Of 2) [12/2012 - ]
| Callout | Description | Callout | Description |
| *A | for Half Cover Type | *B | for Full Cover Type |
| *1 | FAN AND GENERATOR V BELT | *2 | FRONT SUSPENSION MEMBER REINFORCEMENT RH |
| *3 | NO. 1 ENGINE UNDER COVER | *4 | RADIATOR RESERVOIR ASSEMBLY |
| *5 | REAR ENGINE UNDER COVER RH | - | - |
| Specified torque: N*m (kgf*cm, ft.*lbf) | - | - |

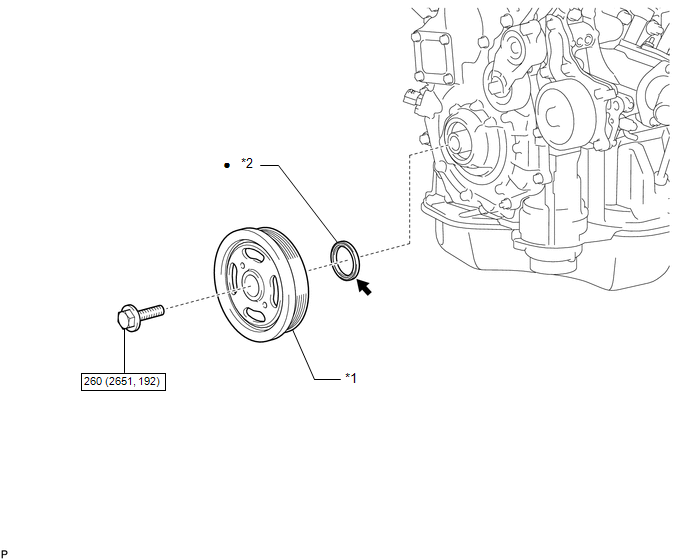

Fig 1: Front Crankshaft Oil Seal Replacement Components With Torque Specifications (2 Of 2) [12/2012 - ]
| Callout | Description | Callout | Description |
| *1 | CRANKSHAFT PULLEY | *2 | TIMING CHAIN COVER OIL SEAL |
| Specified torque: N*m (kgf*cm, ft.*lbf) | • | Non-reusable part | |
| MP grease | - | - |
