SRS Warning Light does not Come ON [11/2014 - ]: Wiring Diagram

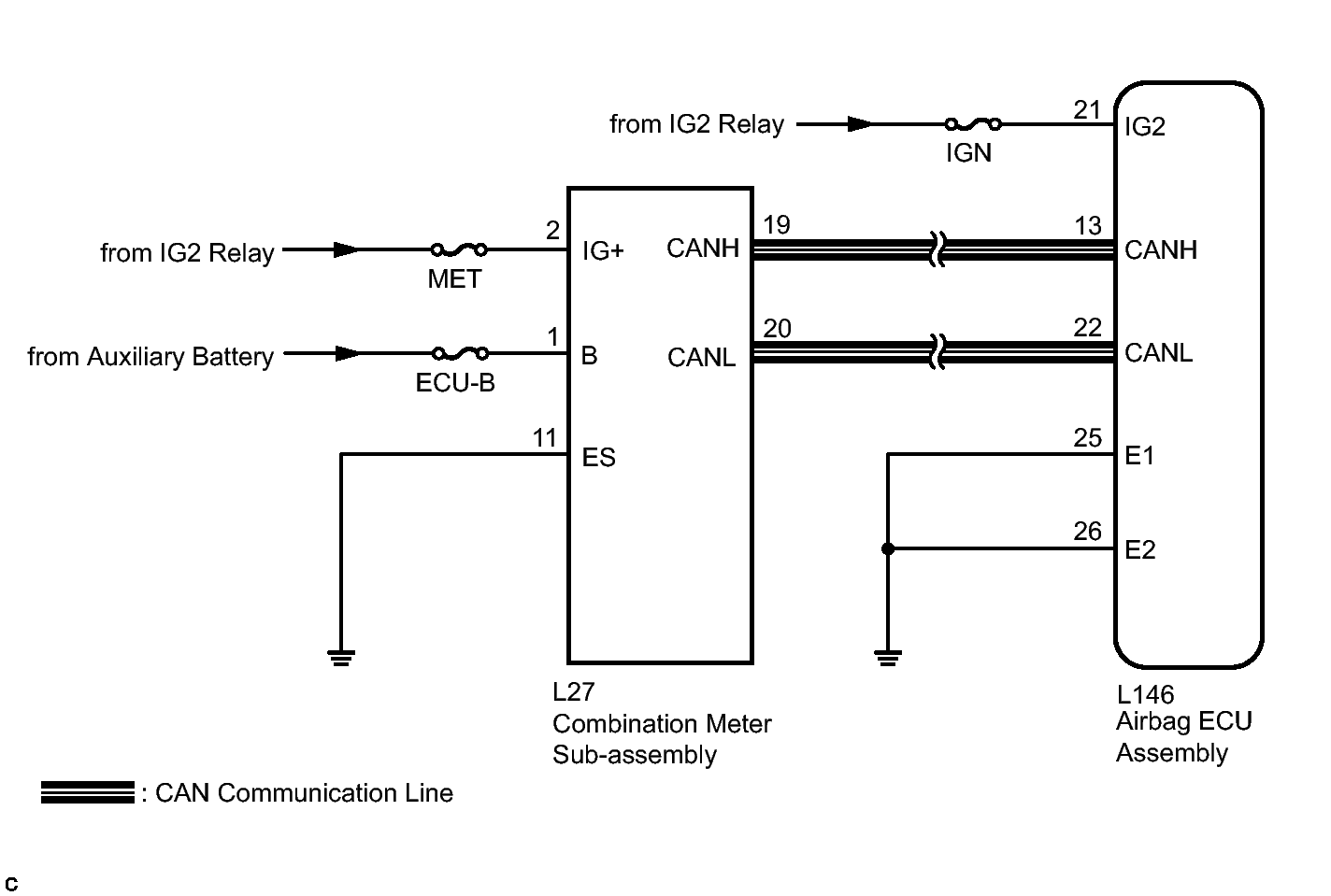

Fig 1: SRS Warning Light Wiring Diagram

GTY475583

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
