DTC B1660/43: Passenger Airbag ON/OFF Indicator Circuit Malfunction [11/2014 - ]: Wiring Diagram

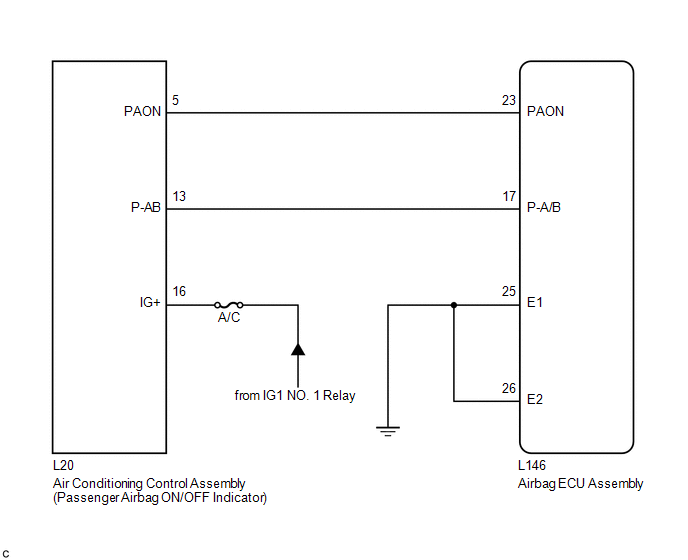

Fig 1: Passenger Airbag ON/OFF Indicator Wiring Diagram

GTY479214

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
