DTC P0AE6-225: Hybrid Battery Precharge Contactor Control Circuit Low [11/2014 - ]: Wiring Diagram

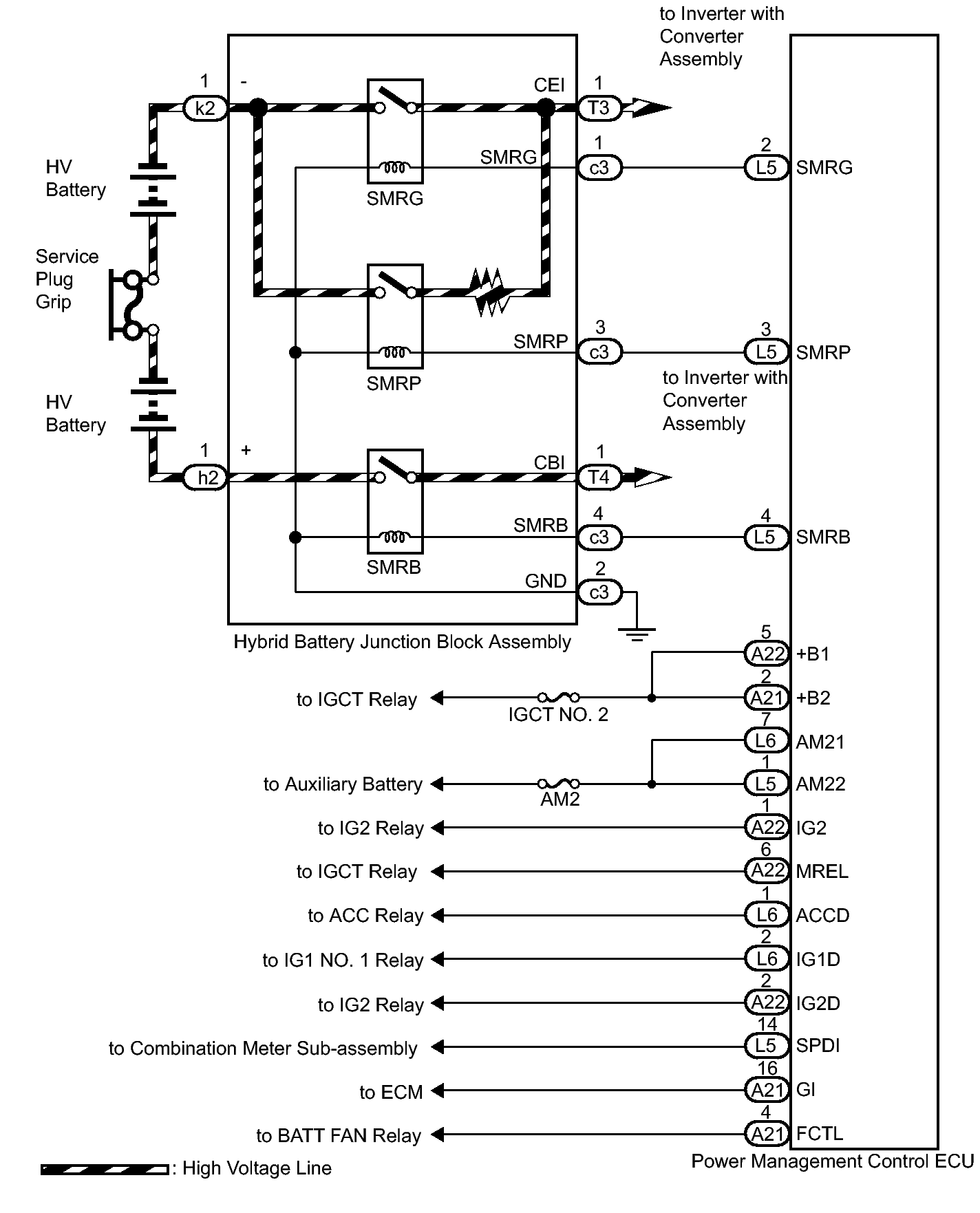

Fig 1: High Voltage Line Wiring Diagram

GTY334152

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
