DTC B2430: LED Headlight LH Circuit Malfunction; DTC B2431: LED Headlight RH Circuit Malfunction [11/2014 - ]: Wiring Diagram

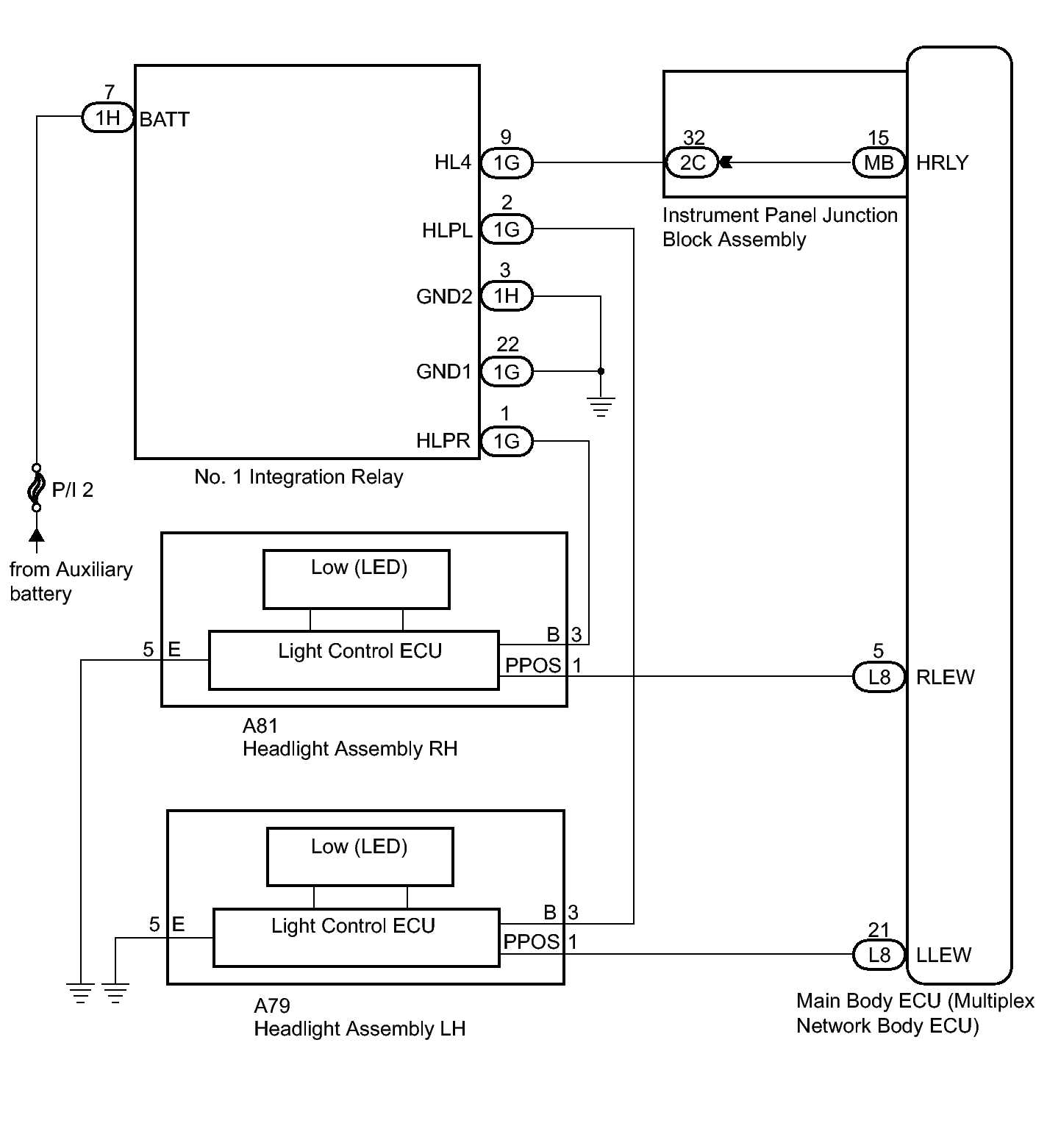

Fig 1: LH & RH Headlight Low Beam Assembly Wiring Diagram
GTY474459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
