Low Beam Headlight Circuit [11/2014 - ]: Wiring Diagram

  1. for Halogen Headlight
    Fig 1: Low Beam Headlight Wiring Diagram (Halogen)
    GTY340123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for LED Headlight

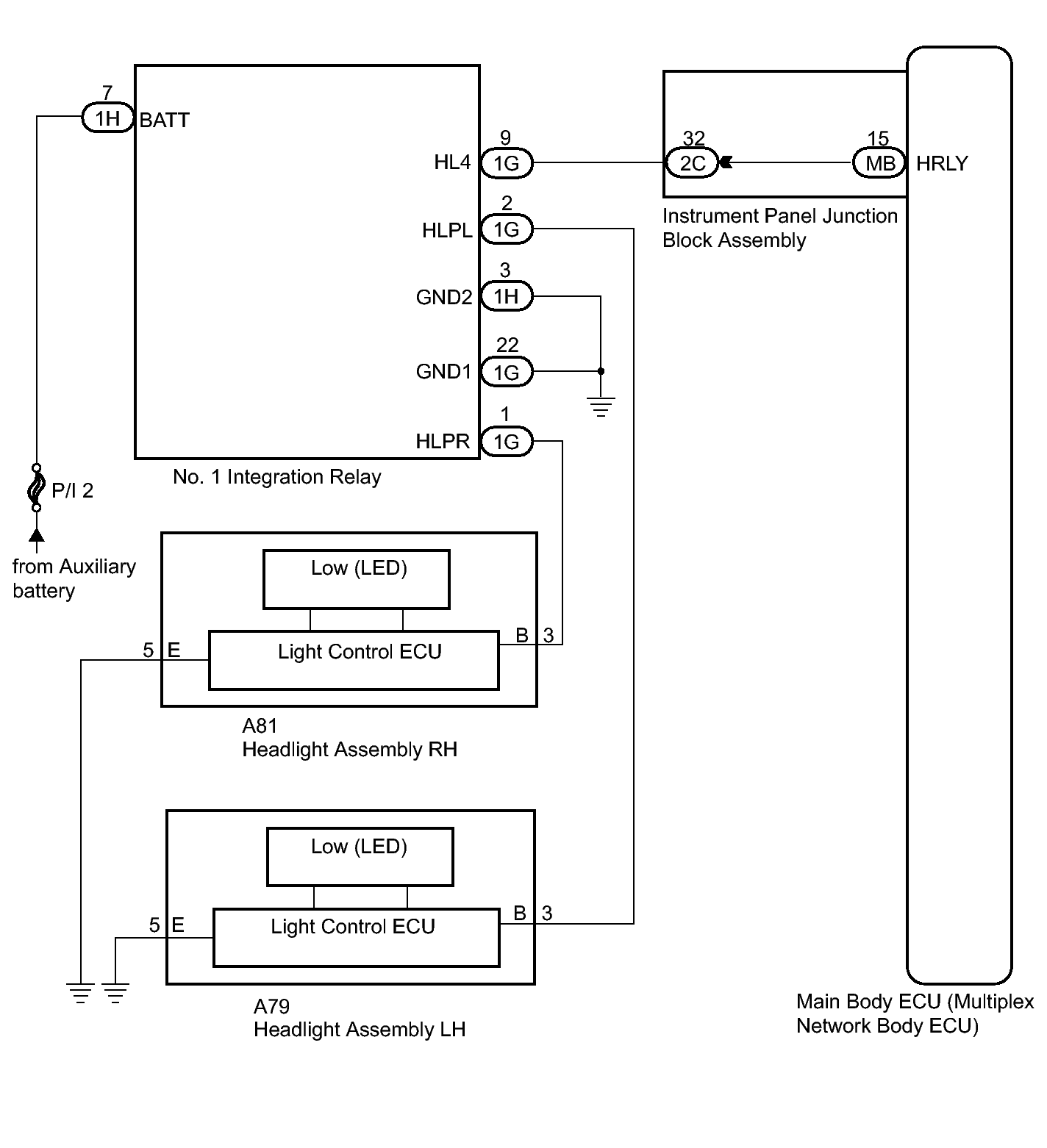

    Fig 2: Low Beam Headlight Wiring Diagram (LED)
    GTY481228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
