Daytime Running Light Relay Circuit [11/2014 - ]: Wiring Diagram

for Halogen Headlight

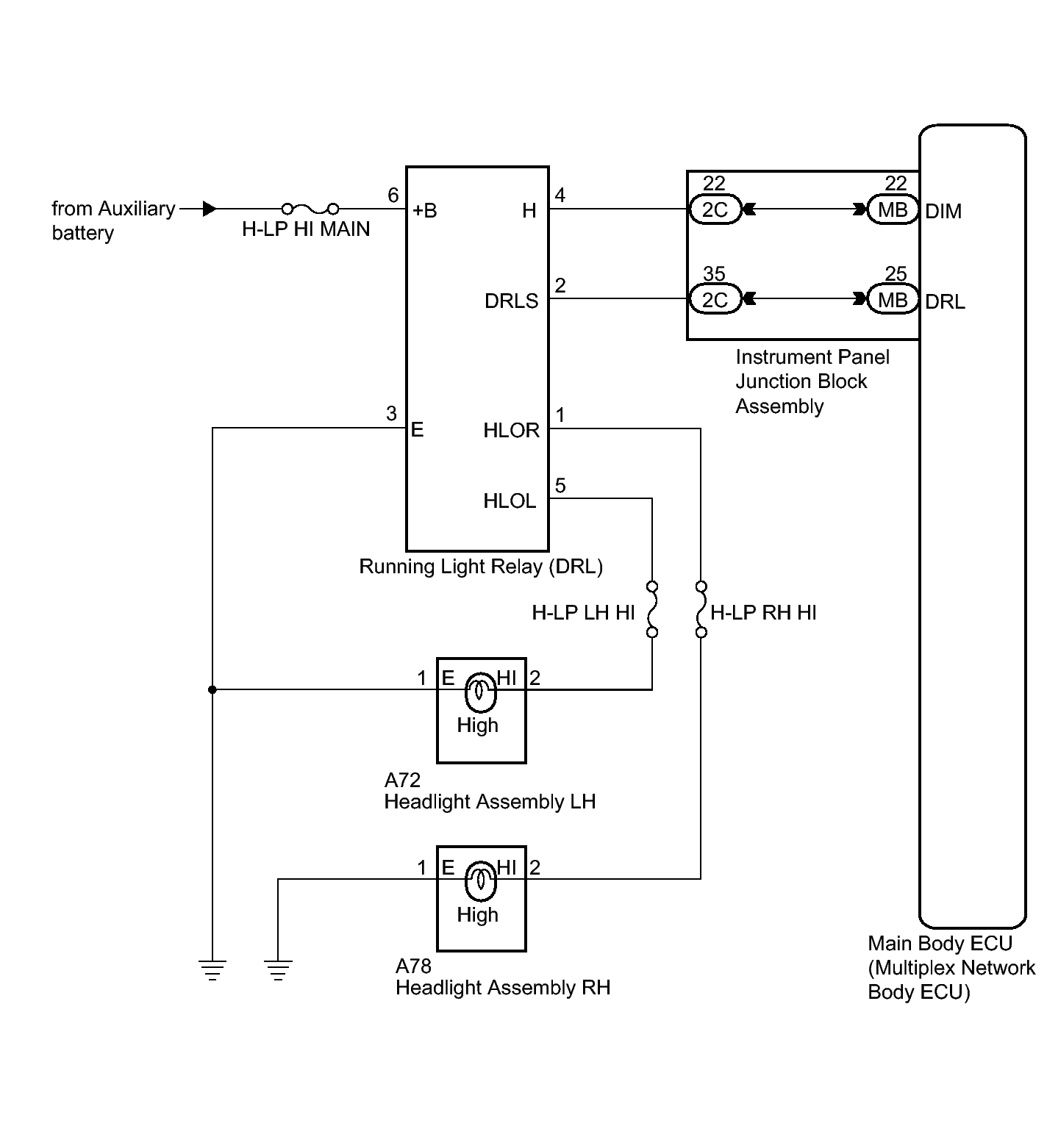

Fig 1: LH & RH Headlight High Beam Assembly Wiring Diagram (Halogen Headlight)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
for LED Headlight (w/o Side Turn Signal Light)

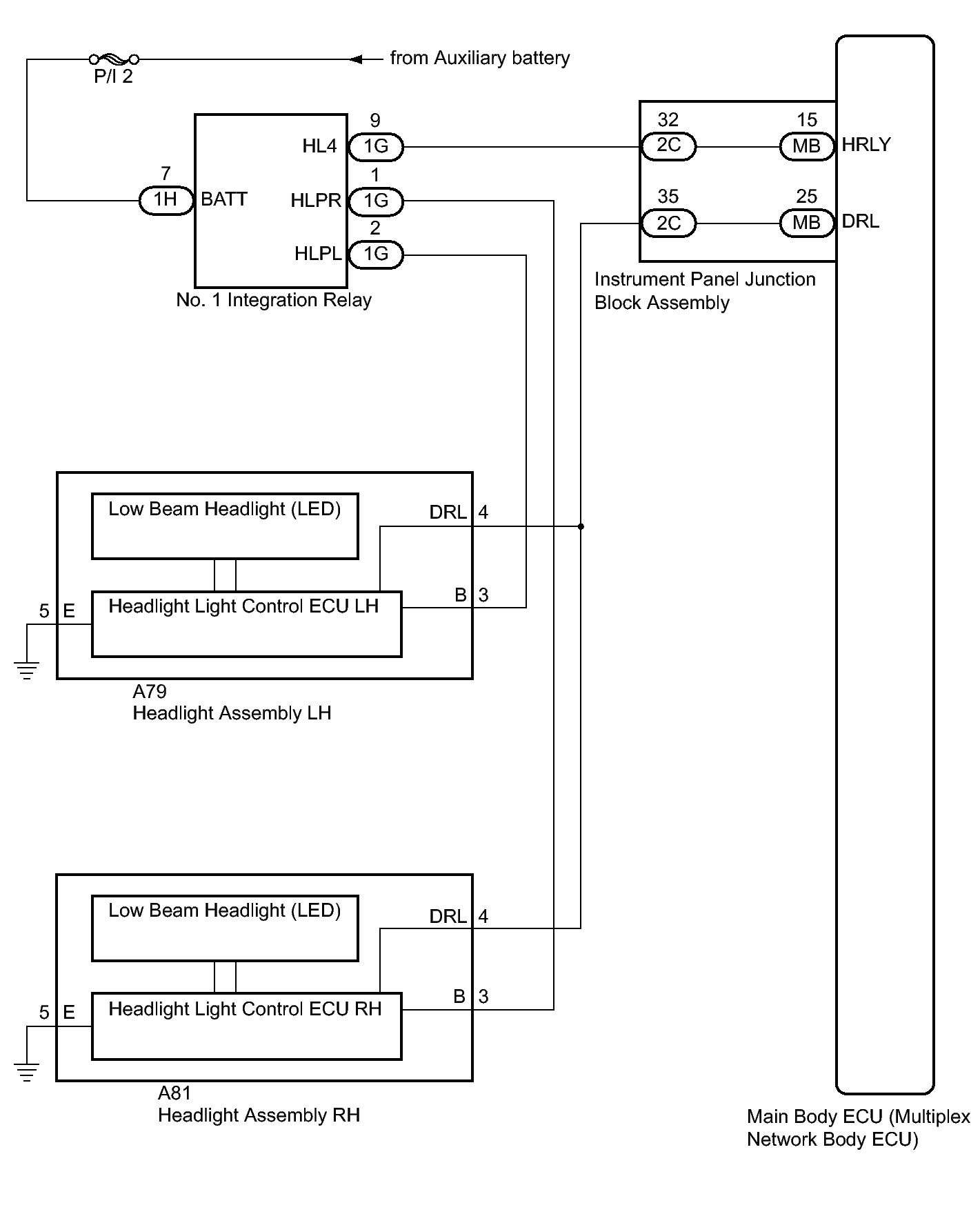

Fig 2: LH & RH Headlight High Beam Assembly Wiring Diagram (LED Headlight)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
