Components [11/2014 - ]: Illustration

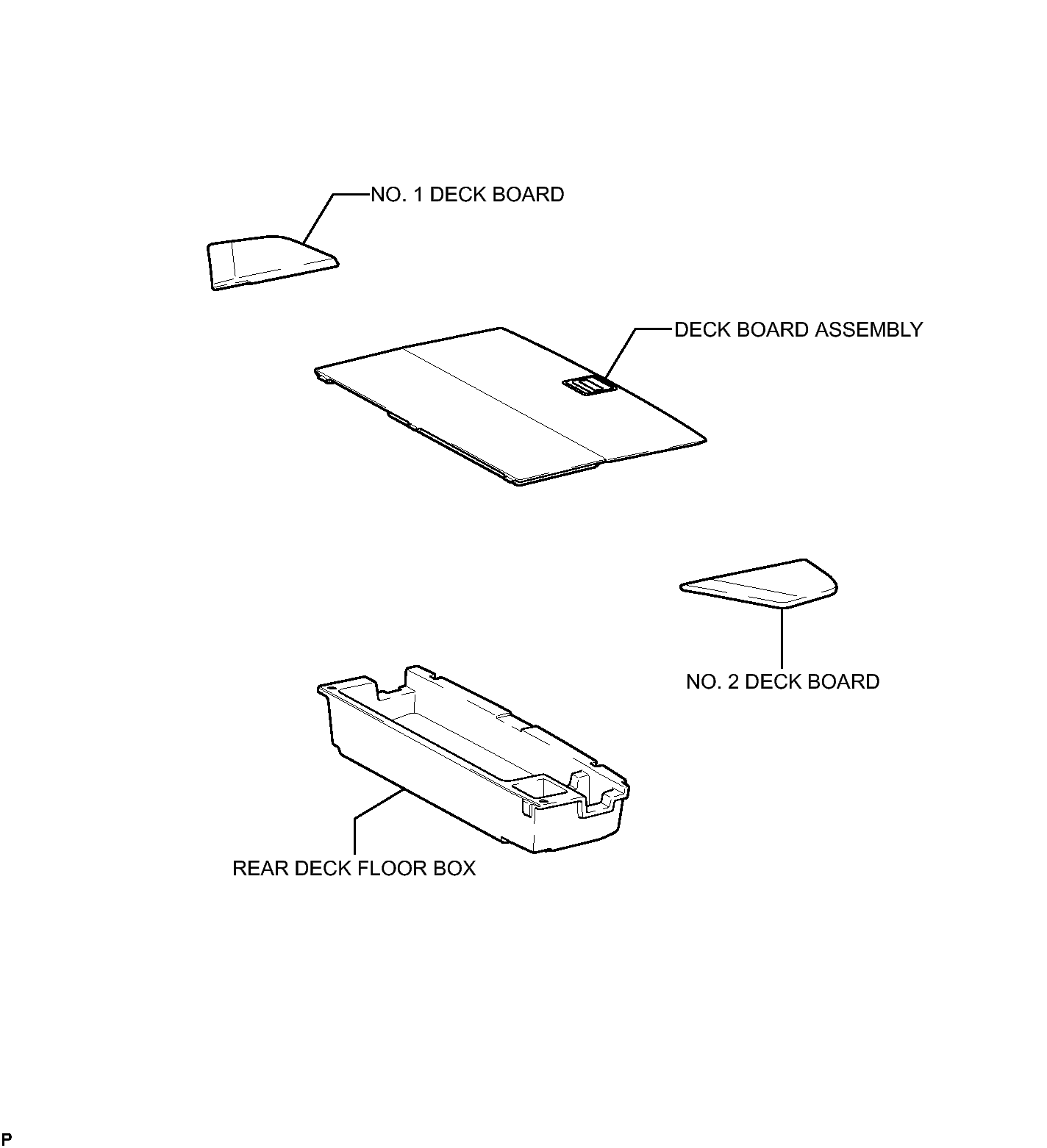

Fig 1: Identifying Tire Pressure Warning Receiver (w/o Vehicle Proximity Notification System) Replacement Components With Torque Specifications (1 Of 5)
GTY478473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

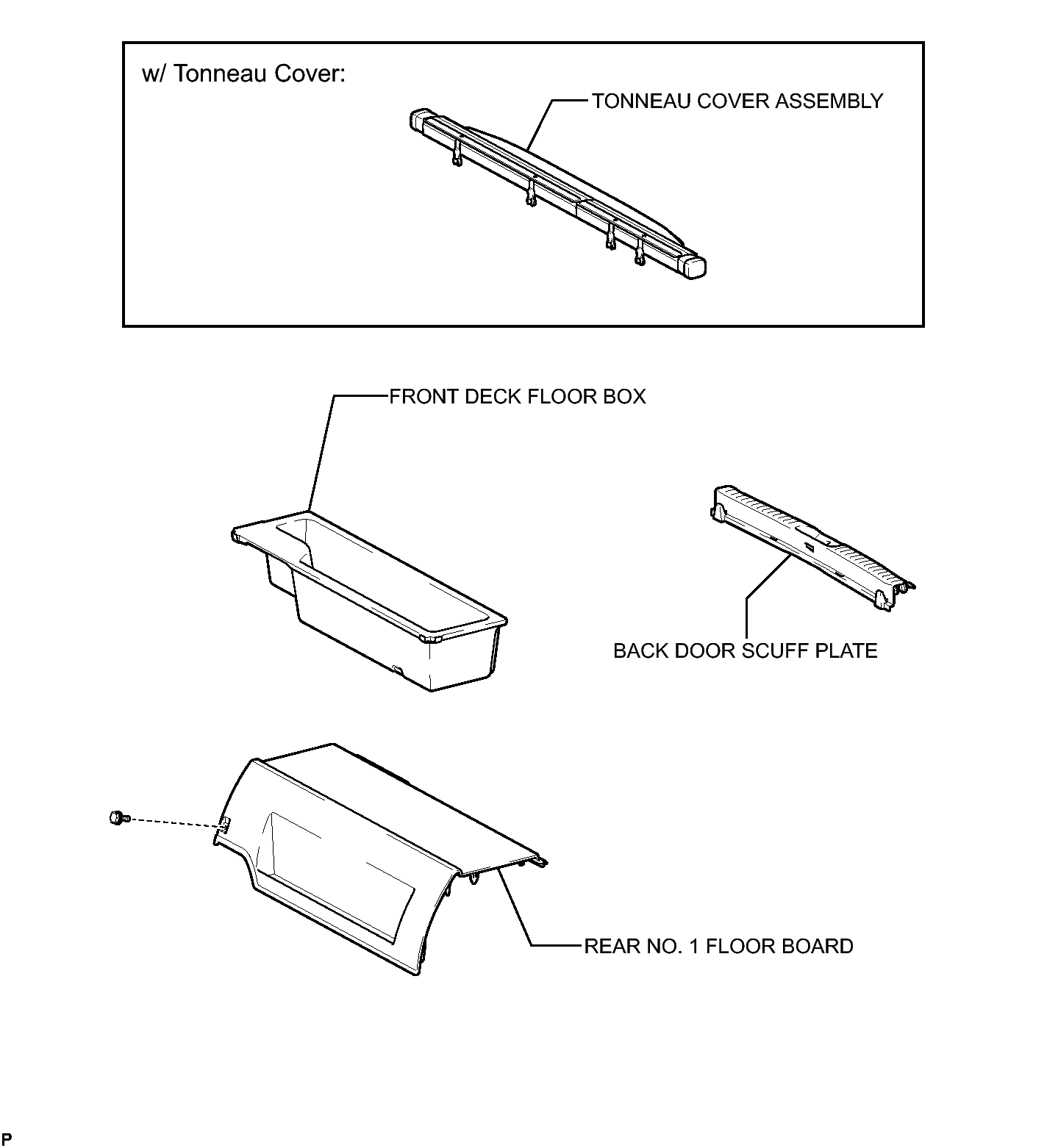

Fig 1: Identifying Tire Pressure Warning Receiver (w/o Vehicle Proximity Notification System) Replacement Components With Torque Specifications (2 Of 5)
GTY328523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Tire Pressure Warning Receiver (w/o Vehicle Proximity Notification System) Replacement Components With Torque Specifications (3 Of 5)
GTY476837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

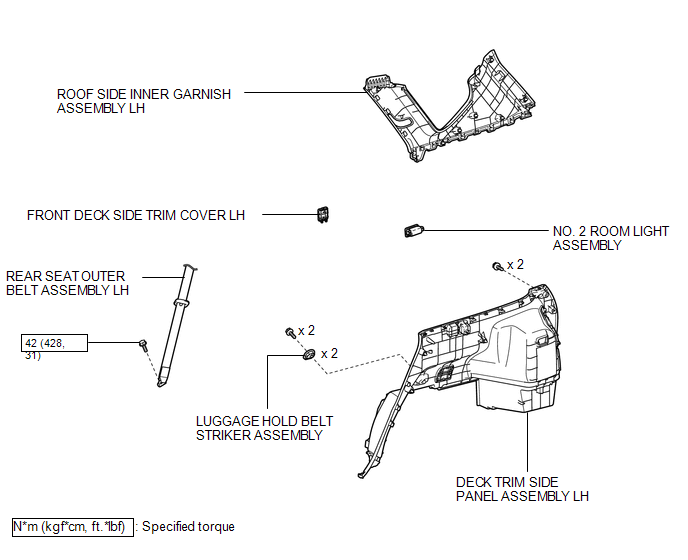

Fig 1: Identifying Tire Pressure Warning Receiver (w/o Vehicle Proximity Notification System) Replacement Components With Torque Specifications (4 Of 5)
GTY477784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

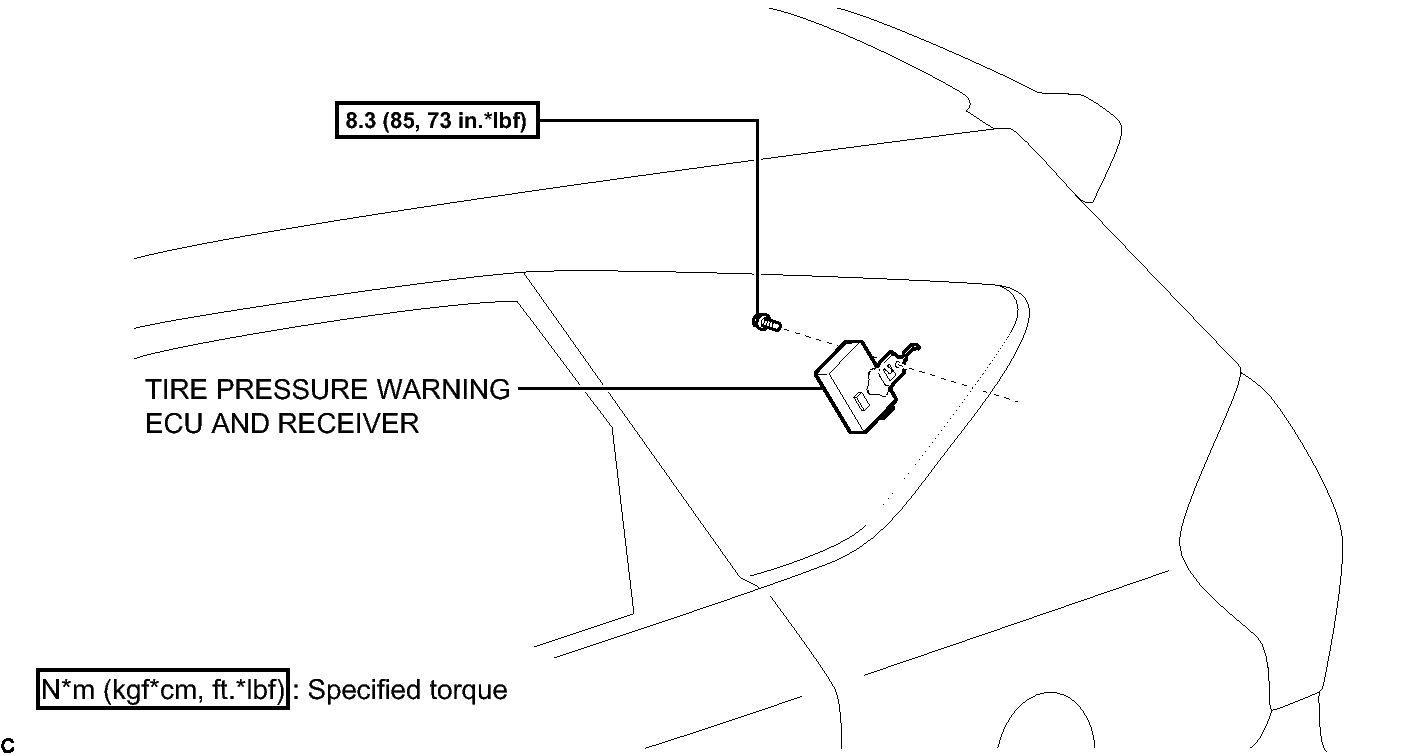

Fig 1: Identifying Tire Pressure Warning Receiver (w/o Vehicle Proximity Notification System) Replacement Components With Torque Specifications (5 Of 5)
GTY480347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
