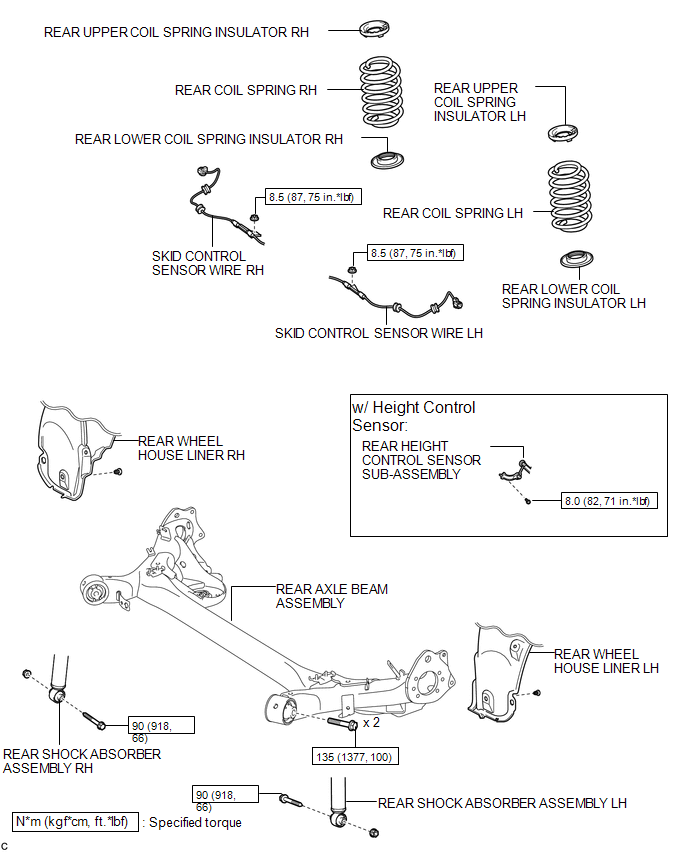

Home >> Toyota >> 2015 >> Prius V Three >> Repair and Diagnosis >> Suspension >> Rear Suspension >> Suspension System - (Rear) - (Service Information) >> Rear Coil Spring >> Components [11/2014 - ] >> Illustration
